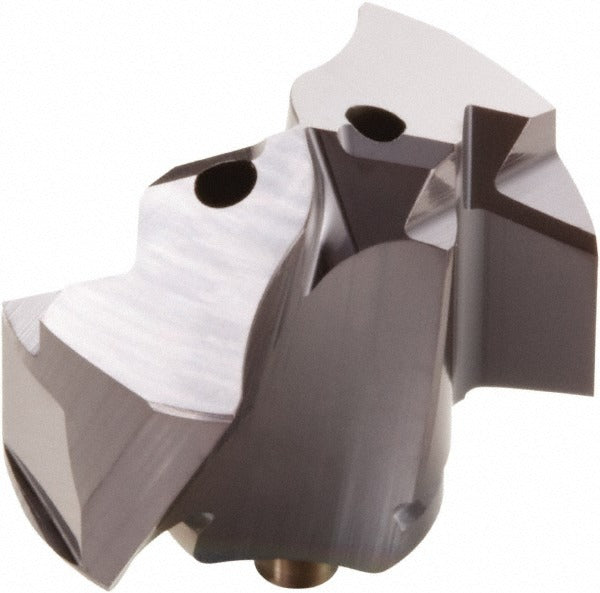

Seco 02634592 Carbide Replaceable Tip Drill 14.29mm SD400

Product Description

The SECO 02634592 is a carbide replaceable tip drill from the SD400 series, designed for precision hole-making in metalworking and machining applications. It features a 14.29mm diameter with a 140-degree included point angle and solid carbide tip material in an uncoated finish. Through-coolant capability channels fluid directly to the cutting zone, reducing heat buildup and evacuating chips efficiently during deep or high-feed drilling operations. This drill is installed and operated by machinists and tooling technicians working on CNC machining centers and drilling equipment in job shop, manufacturing, and production environments.

The SD400 series replaceable tip drill is suited for ferrous and non-ferrous metalworking where repeatable hole quality and extended tool life are required. The P insert geometry designation indicates suitability for steel and steel alloy workpieces. Through-coolant design makes this drill effective in applications requiring chip control and thermal management during interrupted or continuous drilling cycles. It ships individually with a minimum order quantity of 2 units per order.

Key Features

• Solid carbide tip in a replaceable format for cost-effective tooling maintenance
• 140-degree included point angle for self-centering entry and reduced thrust force
• Through-coolant design directs fluid to the cutting edge for chip evacuation and heat reduction
• Uncoated finish on SD400 series platform with P insert geometry for steel workpiece compatibility
• PVD coating process capability within the SD400 platform; this variant ships uncoated

Compatibility

Designed as a replaceable tip drill insert for use with compatible SD400 series drill bodies. Consult the SD400 series tooling documentation to confirm body-to-tip compatibility before ordering.

Installation Notes

Installation of replaceable tip drills should be performed by qualified tooling technicians following the machine tool manufacturer and tooling manufacturer torque and seating procedures for the specific drill body. Power down and lock out the spindle before changing tips. Ensure the tip seating surfaces are clean and free of chips or debris before securing the tip to avoid runout or premature failure. Follow applicable shop safety standards when handling carbide cutting tools.
