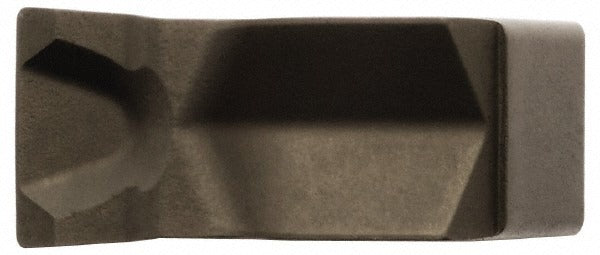

Seco 02625467 Turning Insert TGP25 Solid Carbide

Product Description

The SECO 02625467 is a solid carbide multi-directional turning insert in the MDT series, engineered for precision grooving and turning operations on CNC lathes and turning centers. This double-ended, full-radius insert carries the TGP25 manufacturer grade and features a Duratomic TiCN/Al2O3 coating applied via a controlled physical vapor and chemical vapor deposition process. The insert delivers a 0.157-inch cutting width and 0.157-inch cutting height with a 0.079-inch corner radius. The C5 material grade and Duratomic coating provide thermal resistance and edge integrity when machining cast iron, stainless steel, and steel workpieces.

This insert is suited for multi-directional turning, grooving, and profiling applications in both light and moderate interrupted-cut scenarios. It is used in LCMF-style toolholders on production turning cells handling ferrous materials. The neutral hand orientation and double-end configuration make it adaptable across a range of MDT-series insert seats without changing tool body orientation. Typical users include CNC machinists and toolroom technicians in job shops and production facilities working with steel, stainless, and cast iron components.

Key Features

• Duratomic TiCN/Al2O3 coating for thermal wear resistance on ferrous materials
• Double-ended design extends insert life and reduces per-edge tooling cost
• Full-radius geometry on both ends suits profiling and contour turning
• MP chipbreaker promotes chip control across a range of feed rates and depths
• Neutral hand insert fits MDT-series toolholders without mirrored body requirements
• C5 carbide grade rated for cast iron, stainless steel, and steel applications

Compatibility

Designed for use in LCMF-style insert seats within the MDT series multi-directional turning system. Primary workpiece material codes are K (cast iron), M (stainless steel), and P (steel).

Installation Notes

This insert is seated and secured by a licensed machinist or CNC toolroom technician following the toolholder manufacturer torque and clamping specifications. Power down and lock out the spindle before changing inserts. Inspect the insert pocket and clamping screw for damage before seating a new insert. Do not exceed the toolholder maximum depth-of-cut rating for MDT-series bodies.
