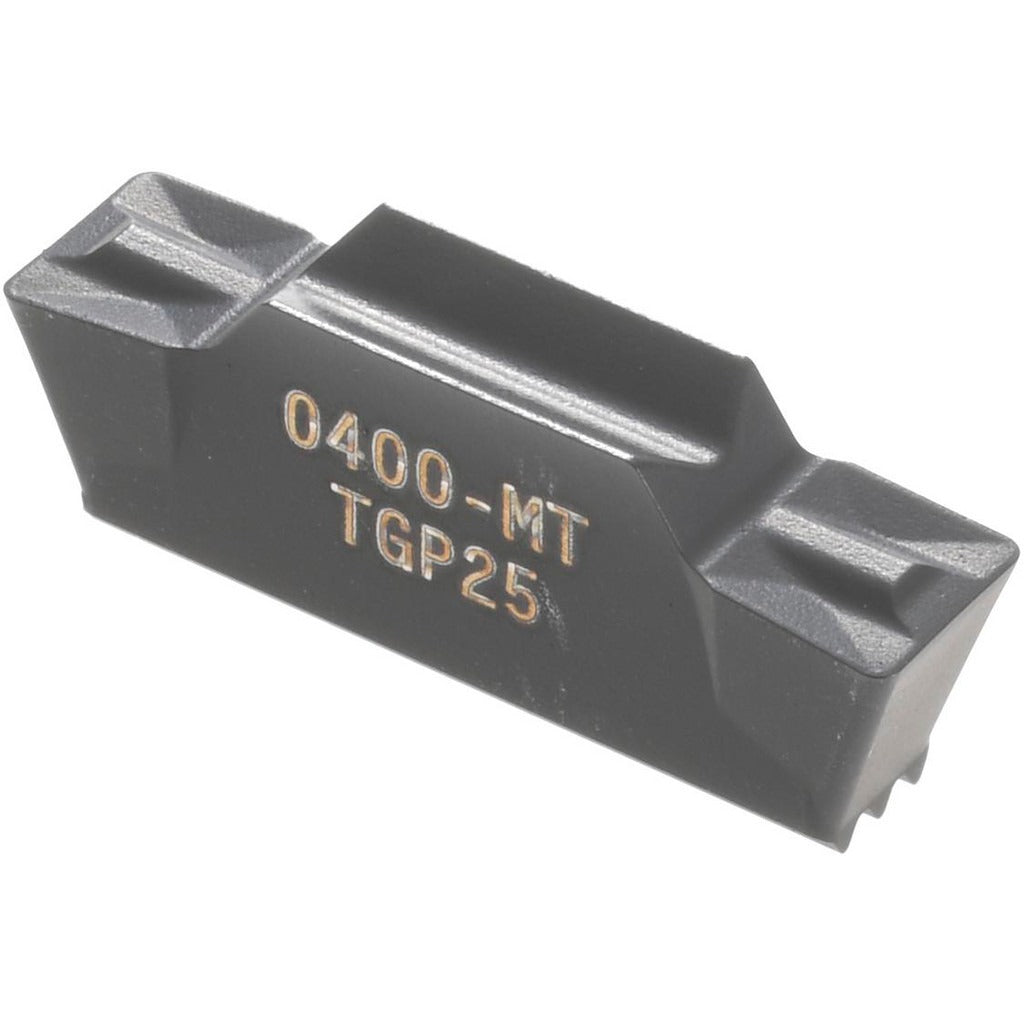

Seco 02623031 Turning Insert LCMF160404 TGP25 Carbide

Product Description

The SECO 02623031 is a solid carbide multi-directional turning insert designed for grooving and parting operations on CNC lathes and turning centers. Carrying the LCMF160404-0400-MT style designation and manufactured in the TGP25 grade with a Duratomic coating process, this double-ended insert delivers consistent edge performance across a range of workpiece materials. The LCMF insert geometry features a neutral hand orientation and an MT chipbreaker that controls chip flow during interrupted and continuous cuts. A relief angle of 7 degrees supports free-cutting action and reduces cutting forces. Licensed machinists and CNC operators install this insert as part of routine tooling maintenance in production turning environments.

This insert is suited for grooving and turning operations in residential shop, job shop, and production machining environments. Primary workpiece material compatibility includes cast iron, stainless steel, and steel, covering a broad range of common production materials. The MDT series insert format positions this tooling in light to medium-duty grooving applications where precise cutting width control is required. It is sold individually per package with a minimum order quantity of 10 pieces, making it appropriate for stocking in tooling cribs or vending systems.

Key Features

• Solid carbide construction in TGP25 material grade for wear resistance in steel and cast iron applications
• Duratomic coating process for enhanced surface hardness and thermal stability at the cutting edge
• Double-ended insert design provides two usable cutting edges per insert
• MT chipbreaker geometry promotes reliable chip control during grooving operations
• Neutral hand orientation allows flexible toolholder compatibility
• Maximum cutting width of 0.157 inches (4.00 mm) suits standard grooving and parting profiles

Compatibility

Designed for use in LCMF-style toolholders within the SECO MDT series. Compatible with workpiece materials coded K (cast iron), M (stainless steel), and P (steel) per ISO material classification.

Installation Notes

Installation is performed by a qualified CNC operator or machinist. Always power down and lock out the machine before seating or replacing inserts. Use the appropriate torque wrench and insert clamping screw specified for the toolholder to avoid cracking the carbide body. Inspect the toolholder pocket for debris or damage before seating the insert.
