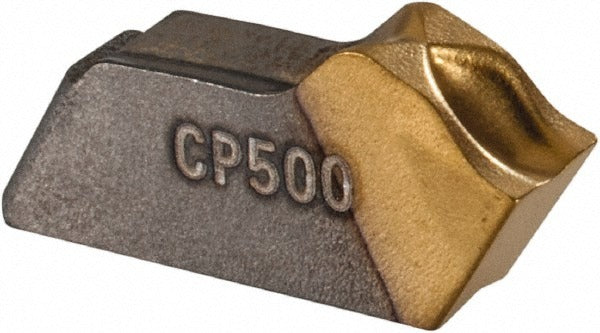

Seco 02622849 Carbide Cutoff Insert CP500 3.10mm

Product Description

The SECO 02622849 is a solid carbide cutoff and parting insert designed for grooving and parting operations on CNC lathes and turning centers. Manufactured to CP500 grade with a micrograin carbide substrate, this insert features a PVD-applied TiAlN/TiN dual-layer coating that improves wear resistance and tool life across a wide range of workpiece materials. The cutting width measures 3.10mm (0.1220 inches) with a corner radius of 0.0080 inches, and the neutral 6-degree lead angle suits both left- and right-hand applications. It is sized to the Series 150.10 seat standard and held in place by a clamp-style toolholder.

This insert is intended for parting and cutoff applications on universal workpiece materials, making it suitable for general-purpose turning in production and job-shop environments. The chipbreaker designation 14 is optimized for controlled chip evacuation during parting cuts. The single-ended geometry and neutral hand designation allow straightforward setup in compatible Series 150.10 clamp-style toolholders. Machinists and CNC operators working in both light and medium-duty turning applications will find this insert a direct fit for standard cutoff work.

Key Features

• CP500 micrograin solid carbide substrate for high edge integrity and consistent tool life
• PVD TiAlN/TiN dual-layer coating for improved heat and wear resistance
• 3.10mm (0.1220 inch) cutting width with 0.0080-inch corner radius for precise parting cuts
• Neutral 6-degree lead angle and neutral hand — compatible with both orientations
• Chipbreaker style 14 promotes reliable chip control during parting operations
• Clamp-style insert seating for secure, repeatable positioning in Series 150.10 toolholders

Compatibility

Designed for use with Series 150.10 clamp-style cutoff and parting toolholders accepting Insert Seat Size 3. Rated for universal workpiece material classification (OD code), suitable for steel, stainless, and non-ferrous materials in standard turning applications.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the toolholder is clear of the workpiece before seating or removing the insert. Use the appropriate clamp key or torx driver specified by the toolholder manufacturer to secure the clamp — do not overtighten. Verify insert seating and clamp engagement before resuming cutting operations.
