Seco 02622286 Spare Parts Package Indexable Turning

Product Description

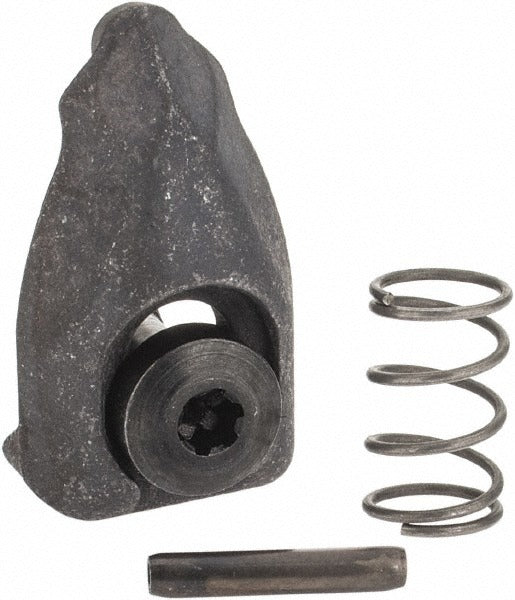

The SECO 02622286 is a spare parts package for indexable turning toolholders, designed to support field service and maintenance of D-style and First Choice series turning tools. The package weighs 0.1 pounds and contains four components: a clamp pin, a clamping screw, a floating wedge clamp, and a spring. These are the wear and replacement items most commonly needed to restore proper insert clamping function in compatible turning holders. Licensed machinists and toolroom technicians use this kit to return toolholders to spec without replacing the entire holder body.

This package is intended for use with D-style indexable turning toolholders in production and job-shop turning applications. It is suited for both manual and CNC lathe setups where insert security and repeatable clamping force are critical. Keeping this spare parts package on hand reduces downtime during toolholder maintenance cycles.

Key Features

• Four-piece kit includes clamp pin, clamping screw, floating wedge clamp, and spring
• Supports D-Style and First Choice series indexable turning toolholders
• Lightweight at 0.1 pounds for easy storage in a toolroom or service kit
• Sold as a single package with a minimum order quantity of 1
• Direct OEM spare parts from SECO for reliable fit and function

Compatibility

Compatible with the following toolholder designations: C.-DCKNR/L-M, C.-DCMNN-M, C.-DCRNR/L, C.-DCRNR/L-M, C.-DDJNR/L, C.-DDJNR/L-M, C.-DDMNL, C.-DDNNN-M, C.-DDUNR/L, C.-DRSNR/L-M, C.-DSDNN-M, C.-DSKNR/L, C.-DSKNR/L-M, C.-DSRNR/L, C.-DSRNR/L-M, C.-DSSNR/L-M, C.-DTGNR/L-M, C.-DWLNR/L, DCBNR/L, DCKNR/L, and DCLNR/L.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians during scheduled toolholder maintenance. Power down and lock out the machine before disassembling any toolholder clamping components. Follow the toolholder manufacturer service documentation for correct component assembly sequence and torque guidance. Inspect the insert pocket and seating surfaces before reassembling to ensure no debris or damage is present.
