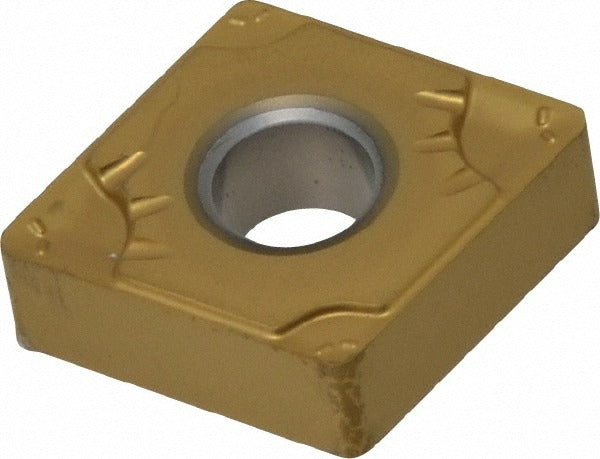

Seco 02615941 Cnmg 432-MF5 TS2000 Carbide Turning Insert

Product Description

The SECO 02615941 is a CNMG 432-MF5 solid carbide turning insert in the TS2000 grade, designed for high-performance metal cutting in demanding machining environments. It features a multilayer TiAlN and TiN PVD coating that extends tool life when cutting stainless steel, superalloys, and titanium. The 80-degree diamond insert shape provides a strong cutting edge, while the MF5 chip breaker geometry supports controlled chip flow during medium finishing operations. With four cutting edges and neutral hand orientation, this insert suits a wide range of turning, facing, and boring applications. Machinists and CNC operators working with difficult-to-machine materials rely on this insert for consistent performance at the spindle.

This insert is rated primarily for stainless steel and superalloy and titanium workpiece materials under ISO material codes M and S, with secondary suitability for steel, cast iron, and hard materials under ISO codes P, K, and H. Material grades M05, M10, S10, and S15 define the recommended operating range. It is compatible with toolholders that accept CNMG-style inserts using clamp, pin, or lever lock holding methods. Typical applications include external turning, facing, and light to medium boring passes on CNC lathes and turning centers in job shop and production environments.

Key Features

• TS2000 grade with multilayer TiAlN and TiN PVD coating for wear resistance in stainless steel and superalloy cutting
• MF5 chip breaker geometry promotes controlled chip evacuation during finishing and medium finishing passes
• 80-degree diamond insert shape with chamfered and honed cutting edge style for a balance of strength and sharpness
• Four usable cutting edges per insert to maximize cost per edge
• Neutral hand orientation supports use in a broad range of CNMG-compatible toolholders
• Compatible with clamp, pin, and lever lock holding systems
• Conforms to ANSI and ISO standards; ISO code CNMG120408-MF5, industry standard number CNMG432-MF5

Compatibility

Designed for use in CNMG-style toolholders accepting clamp, pin, or lever lock insert retention. Suitable for turning, facing, and boring operations on CNC lathes and turning centers. Primary workpiece materials are stainless steel, superalloys, and titanium; secondary materials include steel, cast iron, and hard materials.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before seating or indexing the insert. Ensure the insert pocket and seating surfaces are clean and free of chips before clamping. Follow the toolholder manufacturer's specified clamping torque and procedure for the applicable holding method, whether clamp, pin, or lever lock style.
