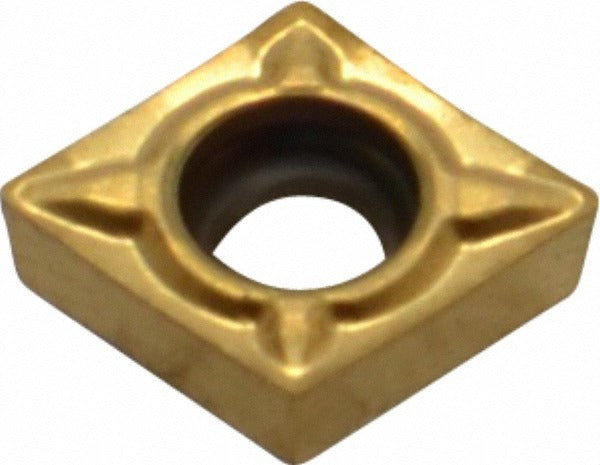

Seco 02614299 Ccmt 21.50.5-F1 TS2000 Turning Insert

Product Description

The SECO 02614299 is a solid carbide turning insert in the CCMT-F1 series, designed for precision metal cutting in CNC turning, boring, and facing operations. It features a PVD-applied multilayer TiAlN and TiN coating over a carbide substrate, offering heat resistance and edge durability at elevated cutting speeds. The insert carries an 80-degree diamond shape with a positive rake geometry and a sharp cutting edge style. With a 0.25-inch inscribed circle and a 0.0079-inch corner radius, it is suited for fine to medium material removal passes. Machining professionals in job shops and production facilities use this insert for general turning applications on ferrous and high-temperature alloy workpieces.

This insert is engineered for primary use on stainless steel and superalloys and titanium, with secondary capability on steel, cast iron, and hard materials. The F1 chip breaker geometry supports positive-rake cutting and is effective across boring, facing, and turning operations. The insert is screw-held, compatible with standard CCMT toolholders, and carries a neutral hand orientation, allowing use in a wide range of turning setups. It is sized to the ISO designation CCMT060202-F1 and meets both ANSI and ISO standards. Material grades M05, M10, S10, and S15 apply, guiding selection of cutting parameters for specific workpiece materials.

Key Features

• PVD multilayer TiAlN and TiN coating for extended tool life on stainless and high-temp alloys
• 80-degree diamond insert shape with sharp cutting edge for clean entry and reduced cutting forces
• Positive rake geometry with F1 chip breaker for effective chip control on ductile materials
• Screw-held insert mounting for secure, repeatable positioning in CCMT-compatible toolholders
• Dual cutting edges maximize insert utilization per piece
• Meets ANSI and ISO standards under designation CCMT060202-F1

Compatibility

Designed for use in CCMT-style screw-clamping toolholders conforming to ANSI and ISO standards. Compatible with material grades M05, M10, S10, and S15 as defined by the manufacturer. Suitable for boring, facing, and turning operations on stainless steel, superalloys, titanium, steel, cast iron, and hard materials.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Ensure the machine spindle is stopped and the toolholder is secure before seating or indexing the insert. Use the appropriate torx or hex key to tighten the clamping screw to the toolholder manufacturer specification. Inspect the insert pocket and seating surface for chips or debris before mounting to ensure proper contact and edge alignment.
