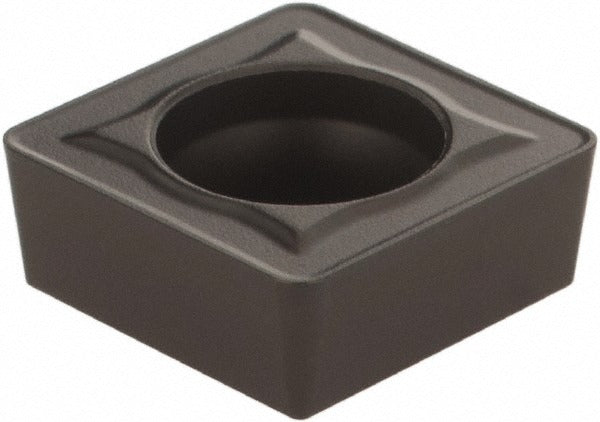

Seco 02590857 SCGX09P2 DP2000 Indexable Drill Insert

Product Description

The SECO 02590857 is a solid carbide indexable drill insert designed for use in indexable insert drills operating in demanding metal-removal applications. Carrying the SCGX insert style with a 90-degree square shape and a 7-degree relief angle, this insert belongs to the Perfomax series and is manufactured to grade DP2000. The Duratomic coating process provides a coated finish that supports extended tool life in abrasive cutting environments. The inscribed circle measures 0.3752 inches (9.53 mm), and the insert thickness is 0.1563 inches. Licensed HVAC, machining, and metalworking tradespeople will recognize the P2 chipbreaker geometry as suited for controlled chip evacuation in drilling operations.

This insert is engineered for primary workpiece materials including cast iron and steel, corresponding to material grades K and P. It is applicable in production drilling environments where consistent chip control and surface integrity are required. The insert size code is 09, with an insert size designation of 09T308. It fits indexable drill bodies designed to accept the SCGX seat geometry and is appropriate for both light and heavy production setups in job shop and manufacturing environments.

Key Features

• SCGX insert style with 90-degree square geometry and 7-degree relief angle for positive cutting action
• DP2000 manufacturer grade with Duratomic coating process for enhanced wear resistance
• P2 chipbreaker geometry designed for controlled chip formation in steel and cast iron
• Inscribed circle of 0.3752 inches (9.53 mm) and width of 0.3750 inches for consistent seating
• Perfomax series designation ensures dimensional compatibility with matching drill bodies
• Solid carbide construction rated to material grade C6

Compatibility

Designed for use with indexable drill bodies configured to accept the SCGX seat geometry within the Perfomax series. Compatible with primary workpiece materials cast iron (K grade) and steel (P grade).

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the spindle before seating or indexing the insert. Use the manufacturer-recommended torx or hex key to secure the insert clamp screw to the drill body pocket. Inspect the pocket seat for chips or debris before installing a new insert, as contamination at the seating surface can cause insert rocking and premature failure.
