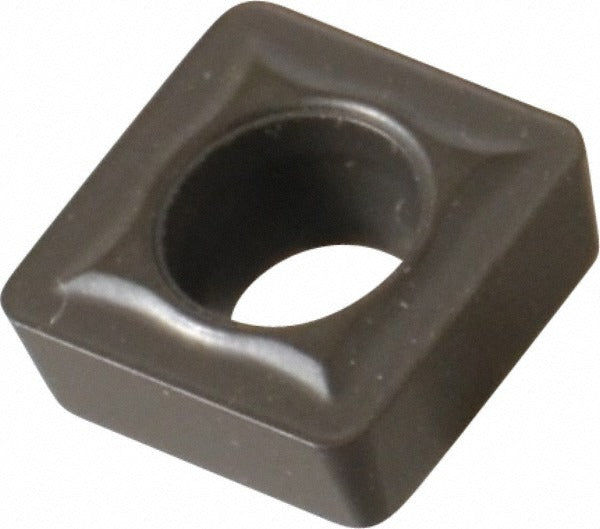

Seco 02590856 SCGX07P2 DP2000 Indexable Drill Insert

Product Description

The SECO 02590856 is an indexable drill insert designed for use with Perfomax series indexable drills. It features an SCGX insert style with a 90-degree square shape and a 7-degree relief angle. The insert is manufactured from solid carbide and carries the DP2000 manufacturer grade with a Duratomic coating process, making it well-suited for demanding drilling applications in cast iron and steel. The chipbreaker designation is P2, and the inscribed circle measures 0.3120 inches (7.94 mm). This insert is installed and indexed by machinists and CNC tooling technicians in production and job-shop environments.

This insert is intended for use in Perfomax indexable drill bodies requiring SCGX-style inserts at the 07 insert size. Primary workpiece materials include cast iron (material grade code K) and steel (material grade code P), covering a broad range of ferrous machining applications in both production runs and general machining operations. The C6 material grade designation indicates suitability for medium to high cutting speeds in these materials.

Key Features

• SCGX insert style with 90-degree square geometry and 7-degree relief angle for positive cutting action
• DP2000 grade solid carbide with Duratomic coating for extended tool life in ferrous materials
• P2 chipbreaker geometry optimized for cast iron and steel chip control
• Inscribed circle of 0.3120 inches (7.94 mm) with insert size code 07
• Corner radius of 0.0315 inches (0.80 mm) for edge strength and surface finish
• Designed for the Perfomax series indexable drill platform

Compatibility

Designed for use with Perfomax series indexable drill bodies requiring SCGX insert style at insert size 07. Suitable for machining cast iron and steel workpiece materials as indicated by primary material grade codes K and P.

Installation Notes

Indexable drill inserts are seated and secured by a qualified machinist or CNC tooling technician following the drill body manufacturer torque and seating guidelines for the specific Perfomax drill holder. Power down and lock out the machine spindle before indexing or replacing inserts. Inspect the insert pocket and clamping screw for wear or damage before seating a new insert. Never force an insert into a damaged or contaminated pocket.
