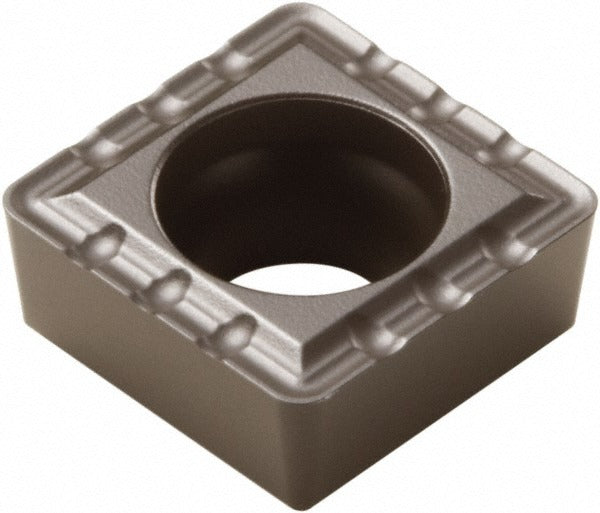

Seco 02590851 Indexable Drill Insert SCGX09P1 DP2000

Product Description

The SECO 02590851 is a solid carbide indexable drill insert designed for use in Perfomax series indexable drills. It carries the SCGX insert style with a 90-degree square shape, Duratomic coating process, and the DP2000 manufacturer grade optimized for cutting steel. The inscribed circle measures 0.3750 inches (9.53 mm), and the corner radius is 0.0315 inches (0.80 mm). The P1 chipbreaker geometry is engineered to promote controlled chip formation in ferrous materials. This insert is installed by machinists and tool-and-die professionals working with CNC or manual drilling operations on steel workpieces.

This insert is intended for use in Perfomax indexable drill bodies that accept the SCGX09 insert seat. It is sized at insert size code 09 (insert size 09T308) with a width and length of 0.3750 inches and a thickness of 0.1563 inches. The primary workpiece material designation is P (steel), making it well-suited for general steel drilling applications in production or job-shop environments. Each package contains one insert.

Key Features

• SCGX insert style with 90-degree square geometry for precise seating in Perfomax drill bodies
• DP2000 grade with Duratomic coating for wear resistance and thermal stability in steel cutting
• Inscribed circle of 0.3750 inches (9.53 mm) and corner radius of 0.0315 inches (0.80 mm)
• P1 chipbreaker for controlled chip evacuation in ferrous materials
• Solid carbide substrate for rigidity and edge retention at higher feed rates
• Insert size code 09, compatible with standard Perfomax series tooling geometry

Compatibility

Designed for use in Perfomax series indexable drill bodies that accept the SCGX09 insert style and seat geometry. Primary workpiece material is steel (ISO material code P).

Installation Notes

Insert installation should be performed with the spindle locked and the machine powered down or placed in a safe state before handling. Use the appropriate torx or hex key as specified by the drill body manufacturer to seat the insert securely without over-torquing the clamping screw. Inspect the insert pocket for chips or debris before seating a new insert. Index or replace the insert at the first sign of edge wear to prevent workpiece damage or drill body seat damage.
