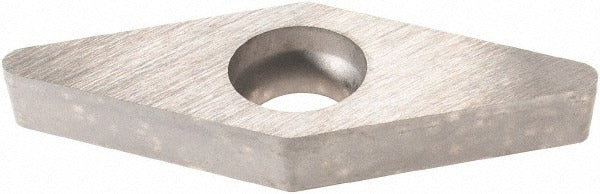

Seco 02587690 Anvil Indexable Toolholder 0.375 Inch Ic

Product Description

The SECO 02587690 is a replacement anvil designed for indexable cutting toolholders. The anvil sits beneath the insert seat, providing a hardened support surface that protects the toolholder pocket from impact forces generated during metal cutting operations. This component is sized for a 0.375 inch insert inscribed circle (IC), corresponding to toolholder insert size code 16. It is compatible with anvil screw C03508-T15P and anvil key T15P-2. Replacement of worn or damaged anvils is a routine part of indexable toolholder maintenance performed by machinists and toolroom technicians.

This anvil is used in indexable milling, turning, or boring toolholders that accept size 16 inserts with a 0.375 inch inscribed circle. Proper anvil condition is critical to insert seating stability and cutting performance. When inserts are indexed or replaced during production, the anvil should be inspected for wear, cracking, or deformation. A damaged anvil compromises insert support and can accelerate toolholder pocket wear. This part is a direct replacement component intended for shop-floor toolholder maintenance and repair.

Key Features

• Sized for 0.375 inch insert inscribed circle (IC), insert size code 16
• Compatible with anvil screw C03508-T15P for positive retention
• Compatible with anvil key T15P-2 for correct orientation and seating
• Sold as a single replacement unit, suitable for one toolholder position
• Designed as an OEM-style replacement to restore toolholder pocket integrity

Compatibility

Designed for use with SECO indexable toolholders accepting size 16 inserts with a 0.375 inch inscribed circle. Anvil screw compatibility: C03508-T15P. Anvil key compatibility: T15P-2. Verify insert size code and anvil screw specification against the toolholder documentation before ordering.

Installation Notes

Installation is performed by machinists or toolroom technicians during routine indexable toolholder maintenance. Remove the existing anvil screw and worn anvil before seating the replacement. Ensure the anvil key is correctly positioned to prevent rotation during screw tightening. Always secure the toolholder in a fixture or vise and confirm the machine is powered down and locked out before servicing any cutting tool components.
