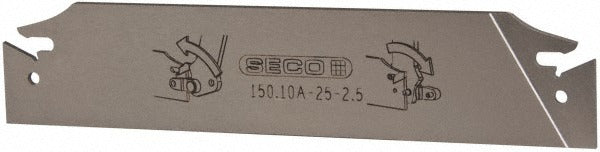

Seco 02578588 Indexable Cutoff Blade Series 150.10

Product Description

The SECO 02578588 is a double end neutral indexable cutoff blade engineered for parting and grooving operations on CNC lathes and turning centers. Measuring 0.984 inches in height, 0.079 inches in width, and 5.91 inches overall length, this blade accepts inserts with a 0.098 inch width and uses a self-grip insert holding method for secure, repeatable clamping without additional fasteners. The ISO-standard blade style designation is 150.10A, compatible with the 150.10-25 tool block style. Designed for professional machinists and toolroom technicians, it handles left-hand and right-hand cutting in a single neutral configuration.

This blade is suited for parting operations on workpieces up to 1.40 inches in diameter in production turning environments. The Series 150.10 platform is a modular system commonly used in high-volume CNC turning applications where quick insert indexing and consistent cutting height are required. A cutting height of 0.984 inches and an insert corner radius of 0.007 inches make it appropriate for precision cutoff work on small-to-mid diameter bar stock in both job shop and production settings.

Key Features

• Double end neutral blade allows left-hand and right-hand parting without changing tooling
• Self-grip insert holding method provides secure clamping without set screws or wedges
• Accepts 0.098 inch wide inserts with 0.007 inch corner radius for precise cutoff geometry
• Maximum workpiece diameter of 1.40 inches suits small-to-mid bar stock turning
• ISO-compliant Series 150.10 platform for standardized insert and toolholder interchangeability
• Insert seat size 2.5 matches the 150.10-2.5 insert family for straightforward sourcing

Compatibility

Compatible with Series 150.10 inserts designated 150.10-2.5 and tool block and toolholder styles designated 150.10-...-25, as specified by the manufacturer. The MSC and manufacturer cross-reference number is 150.10A-25-2.5.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician with the machine powered down and locked out per OSHA lockout-tagout procedures. Seat the blade fully into the compatible 150.10-25 tool block and verify the insert is fully engaged in the self-grip seat before resuming operation. Confirm cutting height alignment to the workpiece centerline before taking the first pass. Do not exceed the rated maximum workpiece diameter of 1.40 inches.
