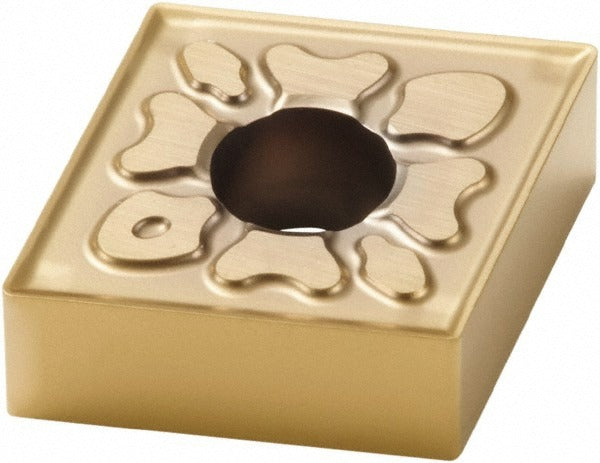

Seco 02573895 CNMG431MF4 CP500 Turning Insert Carbide

Product Description

The SECO 02573895 is a CNMG431MF4 series indexable turning insert manufactured from solid carbide with a multilayer TiAlN and TiN PVD coating and a CP500 grade designation. It features an 80-degree diamond insert shape with a negative rake angle and a chamfered and honed cutting edge style. The MF4 chip breaker geometry is engineered for finishing and medium operations on stainless steel and similar difficult-to-machine materials. With four usable cutting edges and an inscribed circle of 0.5 inches, this insert delivers consistent performance across boring, facing, and turning applications. Licensed machinists and CNC lathe operators install this insert on compatible toolholders using clamp, pin, or lever-lock holding methods.

This insert is suited for CNC turning centers and manual lathes performing operations on stainless steel as the primary workpiece material. Secondary compatible workpiece materials include steel, cast iron, super-alloys, and titanium. The MF4 chip breaker geometry is well-suited to light-to-medium depths of cut with a maximum depth of cut of 0.4921 inches. It is applicable in production and job-shop environments where consistent edge life on tough alloys is required. The insert conforms to both ANSI and ISO standards, with the ISO code CNMG120404-MF4 and the industry standard number CNMG431-MF4.

Key Features

• CP500 carbide grade with multilayer TiAlN and TiN PVD coating for extended tool life on stainless steel
• MF4 chip breaker geometry optimized for finishing and medium turning on tough alloys
• 80-degree diamond insert shape with chamfered and honed cutting edge for edge strength and surface finish
• Four cutting edges per insert for cost-efficient indexing
• Compatible with clamp, pin, and lever-lock toolholder holding methods
• Conforms to ANSI and ISO standards; ISO code CNMG120404-MF4

Compatibility

Designed for use in CNMG-style toolholders that accept a 431 insert size with clamp, pin, or lever-lock holding. Compatible workpiece materials include stainless steel, steel, cast iron, super-alloys, and titanium. Suitable for boring, facing, and turning operations on CNC and manual lathes.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and de-energize the machine before indexing or replacing inserts. Use the appropriate torx or hex key for the toolholder clamping screw and ensure the insert seat and pocket are clean and free of chips before seating the new insert. Follow the toolholder manufacturer's clamping torque specifications and verify insert seating before resuming cutting operations.
