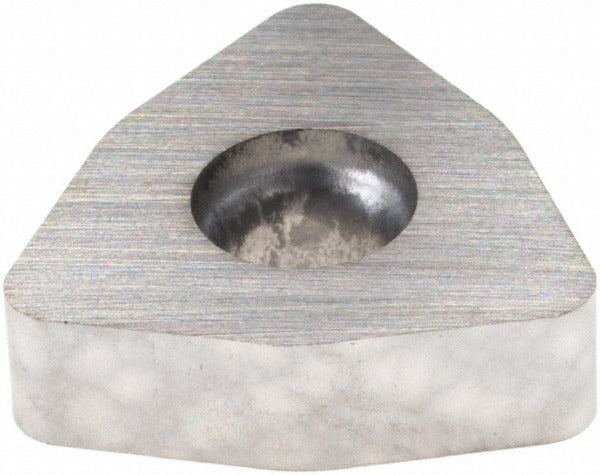

Seco 02570511 Anvil Indexable Toolholder 0.5 Inch External Rh

Product Description

The SECO 02570511 is a replacement anvil designed for use with indexable insert toolholders. The anvil serves as the seating surface beneath the cutting insert, absorbing cutting forces and protecting the toolholder body during external turning and profiling operations. This unit is configured for external right-hand toolholder orientation and accepts inserts with a 0.5 inch (size code 4) inscribed circle. It is compatible with SECO anvil screw C04008 T15P and anvil key T15P-7. Installation is performed by qualified machinists and CNC tooling technicians during insert changeover or toolholder maintenance.

This anvil is intended for external right-hand indexable turning toolholders in CNC lathe and manual turning applications. It fits toolholders requiring a size 4 (1/2 inch) insert seat. Typical install scenarios include routine insert replacement cycles and toolholder rebuild on production or job-shop turning equipment. Use with SECO anvil screw C04008 T15P and anvil key T15P-7 as specified by the manufacturer.

Key Features

• Designed for 0.5 inch inscribed circle inserts (toolholder insert size code 4)
• External right-hand orientation for standard external turning toolholders
• Compatible with anvil screw C04008 T15P and anvil key T15P-7
• OEM-style replacement anvil for SECO indexable toolholder systems
• Sold individually; minimum order quantity of 10 units

Compatibility

Designed for use with SECO indexable external right-hand turning toolholders accepting a size 4 (1/2 inch) inscribed circle insert. Requires anvil screw C04008 T15P and anvil key T15P-7 as specified in the supplier data.

Installation Notes

Installation is performed by a machinist or CNC tooling technician during scheduled insert changeover or toolholder maintenance. Before replacing the anvil, ensure the machine is powered down, the spindle is locked, and all cutting forces are fully relieved. Use the specified anvil key T15P-7 and anvil screw C04008 T15P to seat and secure the anvil properly. Do not substitute non-specified hardware, as improper seating can lead to insert instability and premature tool failure.
