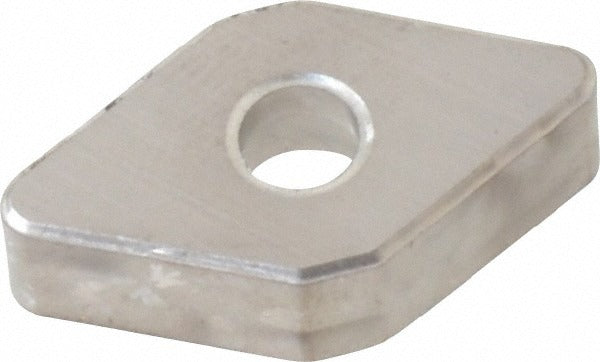

Seco 02570508 Indexable Anvil 0.5 Inch External Right Hand

Product Description

The SECO 02570508 is an indexable toolholder anvil designed to seat and support cutting inserts in external right-hand turning applications. The anvil provides a stable, precision-ground seating surface that protects the toolholder pocket during interrupted cuts and high-feed operations. It is sized for inserts with a 0.5-inch inscribed circle and carries a toolholder insert size code of 4 (1/2). Compatible anvil screw is C04008 T15P, and the matched anvil key is T15P-7. This component is a consumable wear part replaced during routine toolholder maintenance by machinists and tool crib technicians in production turning environments.

This anvil is intended for use in external right-hand indexable turning toolholders configured for 0.5-inch IC inserts. It is suited for CNC lathe and manual lathe applications where carbide or cermet inserts are seated in rigid toolholder pockets. Replacement is typically performed when the seating surface shows wear, deformation, or insert rocking that affects dimensional accuracy. The part ships individually and is cataloged as a stocking replacement component.

Key Features

• Sized for 0.5-inch insert inscribed circle for precise insert seating
• External right-hand anvil orientation for standard OD turning toolholders
• Toolholder insert size code 4 (1/2) compatibility
• Matched screw compatibility: C04008 T15P
• Matched key compatibility: T15P-7
• Lightweight at 0.03 pounds for easy handling during insert changes

Compatibility

Compatible with external right-hand indexable turning toolholders accepting 0.5-inch IC inserts, anvil screw C04008 T15P, and anvil key T15P-7, as specified in the input data.

Installation Notes

Installation is performed by a machinist or tooling technician. Power down and de-energize the machine spindle before servicing the toolholder. Remove the existing anvil screw and key using the correct driver to avoid stripping, seat the replacement anvil flat in the pocket, and reinstall the screw to the toolholder manufacturer's specified torque using the T15P-7 key. Inspect the insert seating surface after installation before resuming cutting operations.
