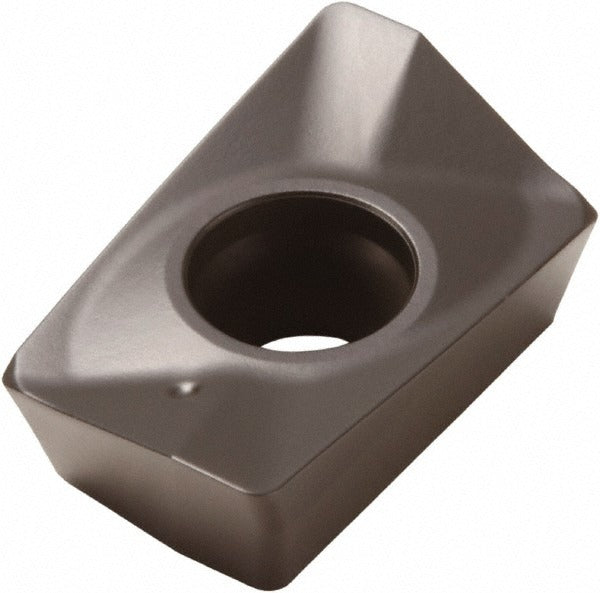

Seco 02566341 Milling Insert XOMX180612TR-M14 MK1500

Product Description

The SECO 02566341 is a solid carbide milling insert carrying the ANSI and ISO designation XOMX180612TR-M14 in the MK1500 manufacturer grade. This single-sided, parallelogram-shaped insert features a 90-degree included angle, a positive rake geometry at 15.5 degrees, and a T-Land cutting edge style. The CVD-applied Duratomic coating combines TiCN and Al2O3 layers for wear resistance in demanding cutting applications. With two cutting edges and a right-hand orientation, it is designed for face and shoulder milling operations performed by machinists and tooling technicians in production environments.

This insert is engineered primarily for cutting cast iron workpieces, corresponding to ISO material grade K. It fits the SECO XOMX-18 series and is compatible with cutter bodies in the R217.69-18 and R220.69-18 series. The M14 chip breaker geometry supports stable chip formation at the cutting depths this insert is rated for. It is suited to both light and moderate roughing passes on cast iron components in job shop and high-volume machining environments. The insert is held in the cutter body by a screw-clamp method, and the micrograin carbide substrate supports consistent edge life under interrupted or continuous cuts.

Key Features

• CVD Duratomic coating with TiCN and Al2O3 for enhanced wear resistance in cast iron applications
• Positive rake angle of 15.5 degrees with T-Land cutting edge style for controlled chip formation
• 15-degree relief angle reduces rubbing and supports clean surface finish on cast iron
• Micrograin solid carbide substrate for consistent toughness and edge retention
• Two cutting edges per insert with right-hand orientation and screw-clamp holding method
• Compatible with R217.69-18 and R220.69-18 cutter body series

Compatibility

Compatible with SECO cutter body series R217.69-18 and R220.69-18. Designed for use in the XOMX-18 series insert platform. Primary workpiece material is cast iron (ISO code K).

Installation Notes

Insert installation and indexing should be performed by a qualified machinist or tooling technician with the spindle fully stopped and machine power isolated per shop lockout/tagout procedures. Use the manufacturer-specified torx or hex key to seat the clamping screw; do not overtighten, as this can crack the carbide substrate. Inspect the insert pocket and seating surfaces for chips or debris before installing a new insert. Confirm correct insert orientation and hand before resuming operation.
