Seco 02526634 Milling Insert SNHQ120516TL4-M07 F40M Carbide

Product Description

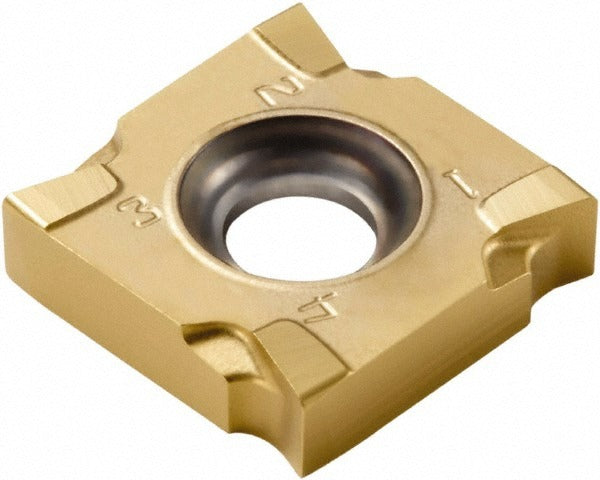

The SECO 02526634 is a solid carbide milling insert carrying the ANSI and ISO designation SNHQ120516TL4-M07 in manufacturer grade F40M. It is a square-shaped, single-sided insert with a negative rake angle of 20 degrees, four cutting edges, and a T-Land cutting edge style. The insert is coated via PVD process with TiAlN and TiN for wear resistance across demanding milling applications. At 0.2126 inches thick with an inscribed circle of 0.5000 inches and a corner radius of 0.0630 inches, it is built for precision material removal in production milling operations. Installation is performed by licensed machinists and tooling technicians on compatible cutter bodies.

This insert is designed for milling steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium. It carries primary material grade codes P, K, and S, with secondary codes K and N. The M07 chip breaker geometry supports medium machining conditions where chip control and edge stability are priorities. The insert is left-hand oriented and fits within the SNHQ-12 series, with documented compatibility with cutter series 335.19-12. It is suited for both roughing and semi-finishing passes depending on depth of cut selection, with a maximum depth of cut of 0.2047 inches.

Key Features

• Solid carbide fine grain substrate with PVD-applied TiAlN and TiN dual coating for extended tool life
• Square insert shape with 90-degree included angle and negative rake for strong edge geometry
• Four cutting edges per insert, left-hand orientation, single-sided design
• M07 chip breaker geometry optimized for medium milling conditions on steel and cast iron
• Maximum depth of cut of 0.2047 inches with a cutting edge effective length of 0.2126 inches
• Screw-held mounting method for secure, repeatable positioning in compatible cutter bodies

Compatibility

Compatible with SECO cutter series 335.19-12. Sold individually; minimum order quantity is 10 units per order. ANSI and ISO code SNHQ120516TL4-M07 applies for cross-reference to compatible tooling systems.

Installation Notes

Installation is performed by machinists or tooling technicians using the appropriate torx or hex key for the screw-clamp mounting system. Verify the cutter body is fully de-energized and the spindle is locked before seating or replacing inserts. Inspect the cutter pocket seating surface for chips or debris before installing a new insert to ensure proper contact and runout. Follow applicable machine shop safety practices and the cutter body manufacturer instructions for recommended clamping torque.
