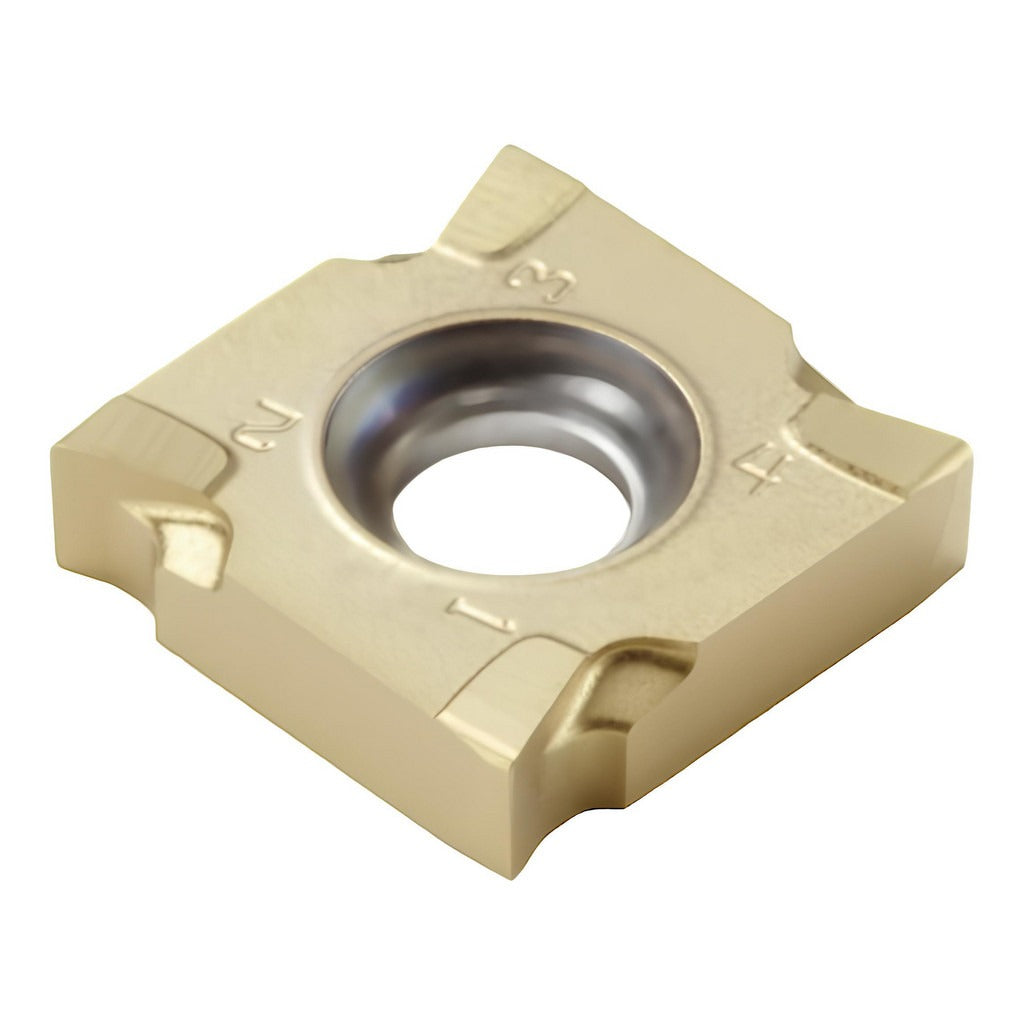

Seco 02526630 Milling Insert SNHQ1204520TR4-M07 F40M Carbide

Product Description

The SECO 02526630 is a solid carbide milling insert carrying ANSI/ISO designation SNHQ1204520TR4-M07 in manufacturer grade F40M. It features a square shape with a 90-degree included angle, four cutting edges, and a T-Land cutting edge style with a negative rake angle of 20 degrees. The insert is PVD-coated with TiAlN and TiN for wear resistance and thermal stability during high-demand milling operations. Thickness measures 0.1772 inches with an inscribed circle of 0.5000 inches and a corner radius of 0.0787 inches. It is designed for right-hand cutting and held in the cutter body by screw. This insert is sold individually with a minimum order quantity of 10 pieces.

This insert is suited for milling steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium across a range of workpiece material codes P, K, S, and N. It fits within the SNHQ-12 series and is compatible with SECO cutter series 335.19-12. Typical applications include face milling and shoulder milling operations in production environments where consistent edge life and predictable chip control are required. The M07 chip breaker geometry supports medium cutting conditions on these material families.

Key Features

• Solid carbide fine-grain substrate with PVD TiAlN and TiN dual coating for extended tool life
• Square insert shape with 90-degree included angle and T-Land cutting edge style
• Four right-hand cutting edges maximize indexing value per insert
• M07 chip breaker optimized for medium-duty milling of steel, cast iron, and superalloys
• Negative rake angle of 20 degrees provides strong edge support on difficult materials
• Compatible with SECO 335.19-12 cutter series for direct OEM-style replacement or new tooling builds

Compatibility

Designed for use with SECO cutter series 335.19-12. Insert series is SNHQ-12. Primary workpiece materials are steel, cast iron, superalloys, and titanium; secondary materials include cast iron and non-ferrous metal.

Installation Notes
