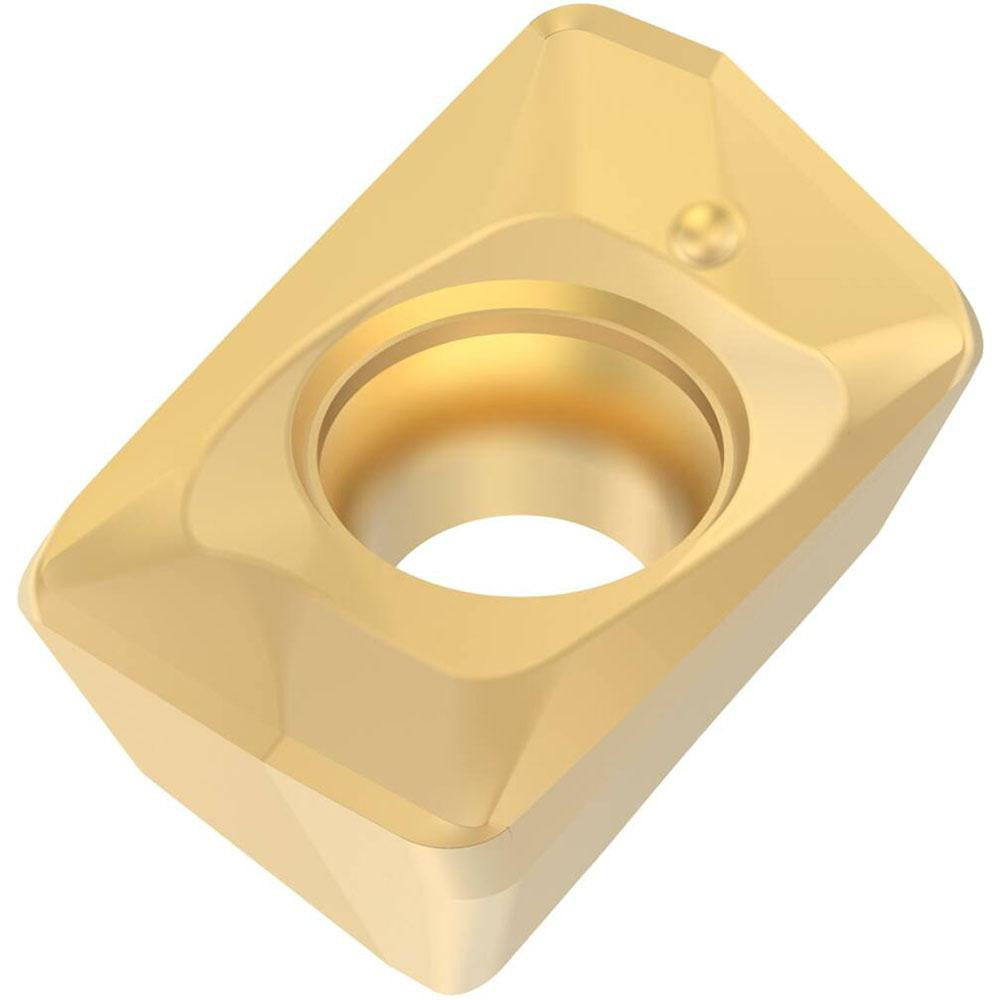

Seco 02502362 Milling Insert XOMX060208R-M05 F15M

Product Description

The SECO 02502362 is a solid carbide milling insert designed for high-performance metal cutting in demanding applications. Manufactured to the XOMX060208R-M05 standard, this single-sided, right-hand insert features a parallelogram shape with a 90-degree included angle and a positive rake geometry of 20.2 degrees. The cutting edge is honed for consistent engagement and is coated with a PVD-applied TiAlN and TiN multilayer finish under the F15M manufacturer grade. With two cutting edges and a maximum depth of cut of 0.2165 inches, this insert is suited for productive milling passes on hard and abrasive workpiece materials.

This insert is intended for use on hard materials as its primary workpiece category, with secondary suitability for cast iron and non-ferrous metals. It carries an ISO classification of XOMX060208R-M05 and fits the R217.69-06 cutter series. Typical install scenarios include face milling and shoulder milling operations on CNC machining centers and manual milling machines in job shop, production, and toolroom environments. The M05 chip breaker geometry supports controlled chip formation across a range of cutting parameters suited to the H, K, and N material application codes.

Key Features

• PVD-coated TiAlN and TiN finish in F15M grade for wear resistance on hard materials
• Positive rake angle of 20.2 degrees reduces cutting forces and heat generation
• Honed cutting edge style provides consistent edge prep for repeatable performance
• Right-hand, single-sided parallelogram insert with screw-type holding method
• M05 chip breaker geometry supports chip control across hard, cast iron, and non-ferrous applications
• Compatible with R217.69-06 cutter series for straightforward indexing

Compatibility

Designed for use with the R217.69-06 cutter series. ANSI and ISO designation XOMX060208R-M05 confirms fitment. Verify seat geometry and screw size against the cutter body before installation.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Ensure the machine spindle is fully stopped and locked out before indexing or replacing inserts. Use the appropriate torx or hex key specified by the cutter body manufacturer to seat the clamping screw to proper engagement without overtightening. Inspect the pocket seat for chips or debris before seating the new insert to ensure full, flat contact.
