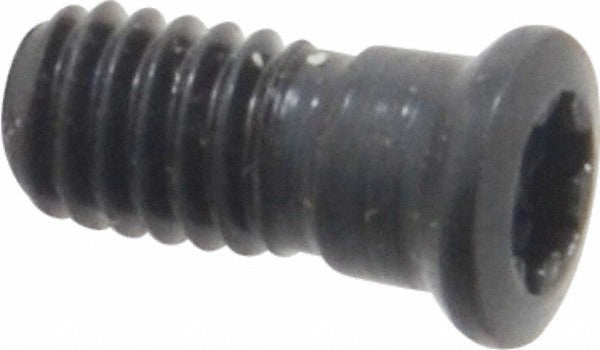

Seco 02483442 Cap Screw T15P Torx Plus M4 X 0.7

Product Description

The SECO 02483442 is a cap screw designed for securing indexable inserts in threading toolholders. It features a Torx Plus T15P drive and an M4 x 0.7 thread specification, providing reliable clamping force and consistent insert seating during threading operations. This screw is compatible with anvil-style insert pockets, which are common in threading and grooving toolholder bodies. Machinists and toolroom technicians install this hardware as a service or replacement component when maintaining indexable tooling assemblies. The Torx Plus drive design reduces cam-out risk during installation and removal, making it well-suited for production environments where insert changes happen frequently.

This cap screw is used in indexable threading toolholders that require anvil-compatible clamping hardware. It is appropriate for both light and heavy threading applications in CNC turning centers and manual lathes. Shops maintaining SECO threading toolholder bodies will use this screw as a direct replacement when existing clamping screws show wear or thread damage. It is sold individually per package, with a minimum order quantity of 10 units, making it practical for stocking as a consumable spare in the toolcrib.

Key Features

• T15P Torx Plus drive reduces cam-out and extends driver life during frequent insert changes
• M4 x 0.7 thread size for precise engagement in indexable threading toolholder bodies
• Anvil-compatible hardware for secure insert clamping in threading applications
• Cap screw form factor provides controlled clamping load on indexable inserts
• Sold as individual units with a minimum order quantity of 10

Compatibility

Designed for use with anvil-compatible indexable threading toolholders requiring an M4 x 0.7 cap screw with a T15P Torx Plus drive. Refer to the toolholder documentation to confirm correct screw specification before ordering.

Installation Notes

Installation is performed by toolroom technicians or machinists as part of routine indexable insert maintenance. Always index or replace the insert with the machine powered down and the spindle locked. Use a calibrated T15P Torx Plus driver or key and tighten to the torque value specified in the toolholder manufacturer documentation — do not estimate torque by feel. Avoid over-tightening, which can strip the pocket threads or crack the insert.
