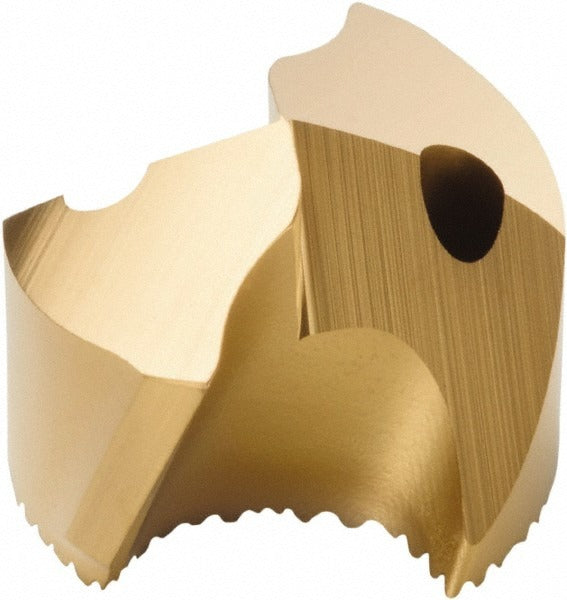

Seco 02469034 Carbide Replaceable Tip Drill 10.5mm Tialn

Product Description

The SECO 02469034 is a carbide replaceable tip drill designed for high-productivity hole-making in steel workpieces. Part of the SD100 series, this drill features a solid carbide tip geometry designated P, a TiAlN coating applied via PVD process, and a 140-degree included point angle. The through-coolant design channels cutting fluid directly to the tip for effective chip evacuation and heat management. At 10.5mm in diameter, this drill is sized for precision bore work where repeatable geometry and consistent tool life are required. Machinists and tool room technicians working in production environments will find this insert-style tip reduces changeover time compared to brazed or solid-body drills.

This replaceable tip drill is intended for use in CNC machining centers and turning centers where steel is the primary workpiece material (ISO material group P). The SD100 series is a modular system in which the carbide tip seats into a compatible SD100 body shank. This unit is sold individually (package quantity of 1) with a minimum order quantity of 2 units. It is suited for production drilling applications in both job shop and high-volume manufacturing environments where tool change speed and diameter consistency are priorities.

Key Features

• Solid carbide tip construction for rigidity and wear resistance in steel cutting
• TiAlN coating via PVD process for elevated heat resistance and extended tool life
• 140-degree included point angle for self-centering entry and reduced thrust force
• Through-coolant capability for chip evacuation and tip cooling at the cutting zone
• Replaceable tip design (SD100 series) reduces body replacement cost during routine maintenance
• P geometry insert optimized for ISO P group steel workpiece materials

Compatibility

Designed for use with compatible SD100 series drill body shanks. Tip geometry designation P is optimized for ISO material group P (steel) workpieces. Consult the SD100 series body selection guide to match shank diameter and coolant port configuration before ordering.

Installation Notes

Installation of the replaceable tip should be performed with the machine fully powered down and the spindle locked. Use the manufacturer-specified torque tool for the SD100 tip interface to ensure proper seating without over-torquing the tip threads. Verify coolant port alignment between the tip and body before securing. Confirm runout with a dial indicator after installation before initiating a cutting cycle.
