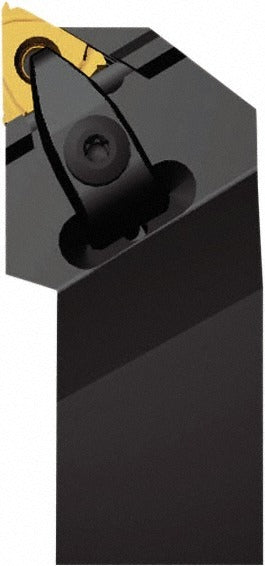

Seco 02467118 Indexable Threading Toolholder External Rh

Product Description

The SECO 02467118 is an indexable threading toolholder designed for external threading and turning operations on lathes and turning centers. The toolholder features a right-hand cutting orientation with a shank measuring 0.3937 inches in height and 0.2362 inches in width. It accepts 16ER-style inserts with a 0.3752-inch inscribed circle, secured by a clamp holding method. The CE-style toolholder body is built for repeatable insert indexing, allowing machinists and tool-and-die professionals to maintain consistent thread form accuracy across production runs without regrinding. This is a single-piece, replacement-ready unit packaged individually.

This toolholder suits external threading and turning applications in metal-cutting environments where indexable tooling is preferred over brazed or solid-shank alternatives. The 4.0000-inch shank length and 2.0000-inch head length provide adequate clearance and reach for standard lathe turret setups. It is appropriate for both production shops and job shops running threading operations on CNC or manual turning equipment. No coolant-through capability is present, so flood or mist coolant must be applied externally at the cutting zone if required by the application.

Key Features

• External threading and turning application with right-hand cutting orientation
• CE-style toolholder accepts 16ER indexable inserts with a 0.3752-inch inscribed circle
• Clamp-style insert holding for secure, repeatable positioning
• Shank height 0.3937 inches, shank width 0.2362 inches for compact turret mounting
• 4.0000-inch total shank length provides reach for standard lathe setups
• No coolant-through design; compatible with external coolant delivery

Compatibility

Designed to accept 16ER-style indexable threading inserts with a compatible insert size code of 1.5 and a 0.3752-inch inscribed circle. Confirm insert grade and thread form designation separately to match the specific thread standard being cut.

Installation Notes

Installation should be performed by a qualified machinist with the machine powered off and the spindle locked before seating or indexing inserts. Ensure the shank is properly torqued into the turret pocket per the machine manufacturer's specifications. Inspect the clamp and insert pocket for chips or debris before each insert change to maintain seating accuracy. Follow the toolholder manufacturer's recommended clamping sequence to avoid insert cracking or pocket damage.
