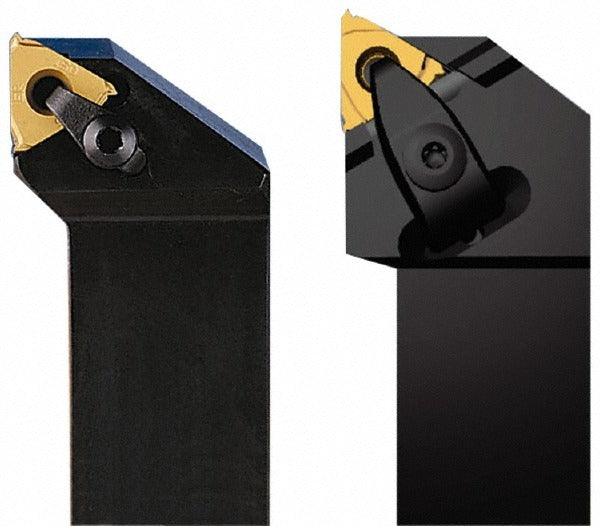

Seco 02462835 Threading Toolholder External Rh 1x1 Shank

Product Description

The SECO 02462835 is an external, right-hand indexable threading toolholder designed for threading and turning operations on metalworking lathes and turning centers. Built in a CE toolholder style, it accepts 27ER inserts secured by a clamp-style holding method. The shank measures 1 inch wide by 1 inch tall with an overall length of 6 inches, making it a compact but rigid platform for single-point threading work. This toolholder does not include coolant-through capability. It is sold individually and is suited for machinists and toolroom technicians running production or jobshop threading applications.

This toolholder is used in external threading and turning applications on conventional and CNC lathes. It is a right-hand tool intended for standard left-to-right cutting orientations on the workpiece. The square 1 x 1 inch shank fits standard tool blocks and quick-change toolpost systems sized for that shank dimension. The CE style designation and 27ER insert compatibility make it a direct fit for shops already running that insert platform. It covers threading and turning duties in a single multi-use body.

Key Features

• External threading and turning capability in one toolholder body
• Accepts 27ER indexable inserts with a 5/8 inch inscribed circle
• CE toolholder style with clamp-style insert retention
• 1 x 1 inch square shank, 6 inches overall length
• Right-hand cutting orientation for standard lathe setups
• No coolant-through ports, keeping setup straightforward

Compatibility

Designed for use with 27ER series indexable threading inserts. The CE toolholder style and 1 x 1 inch square shank are compatible with standard tool blocks and quick-change toolpost holders sized for that shank format.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before mounting or changing the toolholder. Seat the shank fully in the tool block and torque the clamping screws evenly to ensure rigidity before taking a threading pass. Confirm insert orientation and hand of cut match the intended threading direction before starting the machine.
