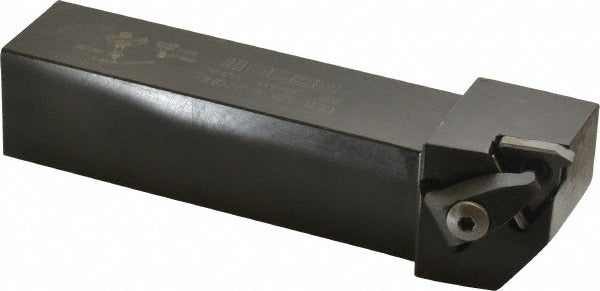

Seco 02462829 Indexable Threading Toolholder 1.25 in

Product Description

The SECO 02462829 is an indexable threading toolholder designed for external threading and turning operations on CNC lathes and manual turning centers. Part of the Snap Tap series, it accepts 22ER inserts held by a clamp-style insert holding method, providing secure, repeatable insert positioning during threading cuts. The shank measures 1.25 inches wide by 1.25 inches tall with an overall length of 6 inches. The CE toolholder style and right-hand cutting orientation make this a standard configuration for external thread generation in production and job-shop environments. Licensed machinists and CNC operators install this holder in standard square-shank tool stations.

This toolholder is suited for external threading and turning applications on lathes equipped with standard square-shank tool posts or turret stations accepting a 1.25 x 1.25 inch shank. The Snap Tap series is built for repetitive threading cycles where fast insert indexing and consistent thread form accuracy are required. It operates without coolant-through capability, making it appropriate for applications where through-coolant is not available or not required. The multi-use designation allows it to serve both threading and turning operations from a single holder body.

Key Features

• External, right-hand cutting orientation for standard OD threading operations
• Accepts 22ER inserts with a 1/2 inch inscribed circle via clamp-style holding
• CE toolholder style in the Snap Tap series for fast, repeatable insert indexing
• 1.25 x 1.25 inch shank cross-section fits standard square-shank tool stations
• Multi-use design supports both threading and turning applications
• No coolant-through requirement simplifies setup in standard turning environments

Compatibility

Compatible with 22ER threading inserts with a 1/2 inch inscribed circle. Designed as an OEM-style fit for lathes and turning centers with tool stations accepting a 1.25 x 1.25 inch square shank. Verify turret or tool post bore dimensions before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC setup technician. Power down and lock out the machine before mounting or removing the toolholder from the turret or tool post. Ensure the shank seating surfaces are clean and free of chips before torquing hold-down fasteners. Confirm insert orientation and thread hand before running the first threading pass.
