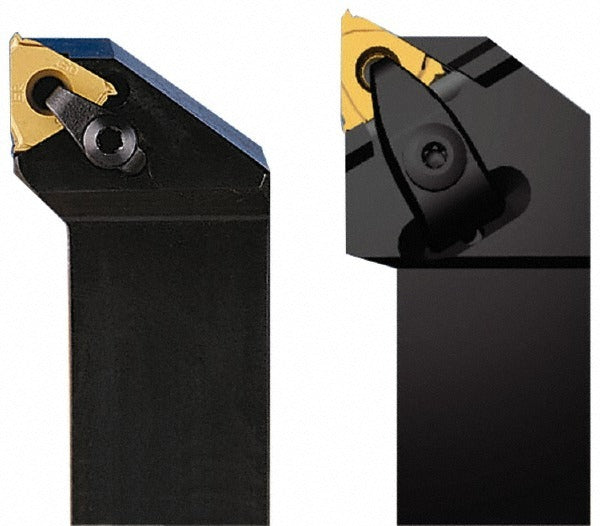

Seco 02462827 Threading Toolholder 1x1 Inch Ce 22ER

Product Description

The SECO 02462827 is an external, right-hand indexable threading toolholder designed for precision threading and turning operations on CNC lathes and manual turning centers. Built to a CE toolholder style, it accepts 22ER indexable inserts secured by a clamp-type holding method. The shank measures 1 inch wide by 1 inch tall with an overall length of 6 inches, making it a compact, rigid choice for external thread-cutting applications. This toolholder does not include a coolant-through feature, and the insert inscribed circle is 1/2 inch. Machinists and tool-and-die professionals specify this holder for consistent thread geometry on external workpiece diameters.

The 02462827 suits external threading and turning applications in production and job-shop environments. Its right-hand configuration is appropriate for standard left-to-right feed operations on a lathe. The CE toolholder style and 22ER insert compatibility make it a common fit for threading steel, stainless, and non-ferrous materials in both light and moderate material-removal threading passes. The head length is 1.3 inches, and the back-of-bar to cutting edge dimension is 1.25 inches, providing predictable tool-tip positioning during setup.

Key Features

• CE-style toolholder body accepts 22ER indexable threading inserts
• Clamp-style insert holding method for secure, repeatable seating
• External thread-cutting orientation with right-hand feed direction
• 1 x 1 inch square shank for standard tool-block and quick-change compatibility
• Dual application rating: threading and turning operations
• No coolant-through passages, simplifying setup on standard turrets

Compatibility

Designed for use with 22ER indexable threading inserts. The CE toolholder style is compatible with standard lathe tool blocks and quick-change toolpost systems that accept a 1 x 1 inch square shank.

Installation Notes

Installation is performed by machining tradespeople or tool-room technicians. Power down and bring the spindle to a full stop before seating or indexing any insert. Secure the shank firmly in the tool block to the torque specifications recommended by the machine manufacturer. Verify insert seating and clamp engagement before running a test pass at reduced feed and speed.
