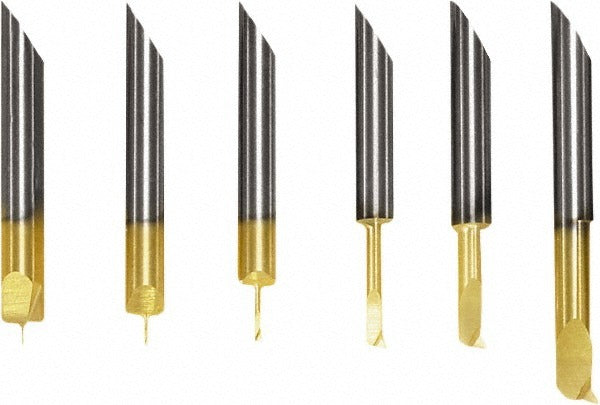

Seco 02462584 Boring Bar 5/32 Inch Shank Solid Carbide

Product Description

The SECO 02462584 is a solid carbide boring bar designed for precision internal turning operations on small-diameter bores. It handles a minimum bore diameter of 5/64 inches (0.0790 inches / 2.01 mm) and reaches a maximum bore depth of 0.1260 inches (3.20 mm). The right-hand cutting direction and 98-degree bar end angle make it suitable for standard internal finishing passes in tight spaces. With an overall length of 1.2090 inches and a 5/32-inch shank diameter, this bar is sized for compact toolholders and small-part machining setups. The solid carbide construction delivers rigidity and wear resistance in ferrous and non-ferrous materials.

This boring bar is used in CNC turning centers, lathes, and similar machine tools where small internal diameters require precise material removal. It is suited to production machining shops, toolrooms, and maintenance shops working with miniature components, hydraulic fittings, small housings, or precision instrument parts. The 0.0040-inch corner radius supports fine surface finishes on finished bore walls. Series C16 designation aligns this tool with compatible SECO toolholding systems for that shank size.

Key Features

• Solid carbide construction for rigidity and extended tool life in small-bore applications
• Minimum bore diameter of 5/64 inches (0.0790 inches) for tight internal features
• Maximum bore depth of 0.1260 inches (3.20 mm) suits shallow internal passes
• Right-hand cutting direction for standard lathe and turning center setups
• 0.0040-inch corner radius supports smooth surface finish on bore walls
• 98-degree bar end angle provides clearance in confined bore entries

Compatibility

Designed for use with SECO Series C16 toolholding systems accepting a 5/32-inch shank diameter boring bar. Verify toolholder bore and clamping method before installation.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before inserting or adjusting the boring bar in the toolholder. Confirm shank diameter and toolholder bore match before clamping. Follow the machine manufacturer and tooling manufacturer guidelines for overhang, clamping torque, and runout tolerance to avoid chatter or tool deflection in small-bore operations.
