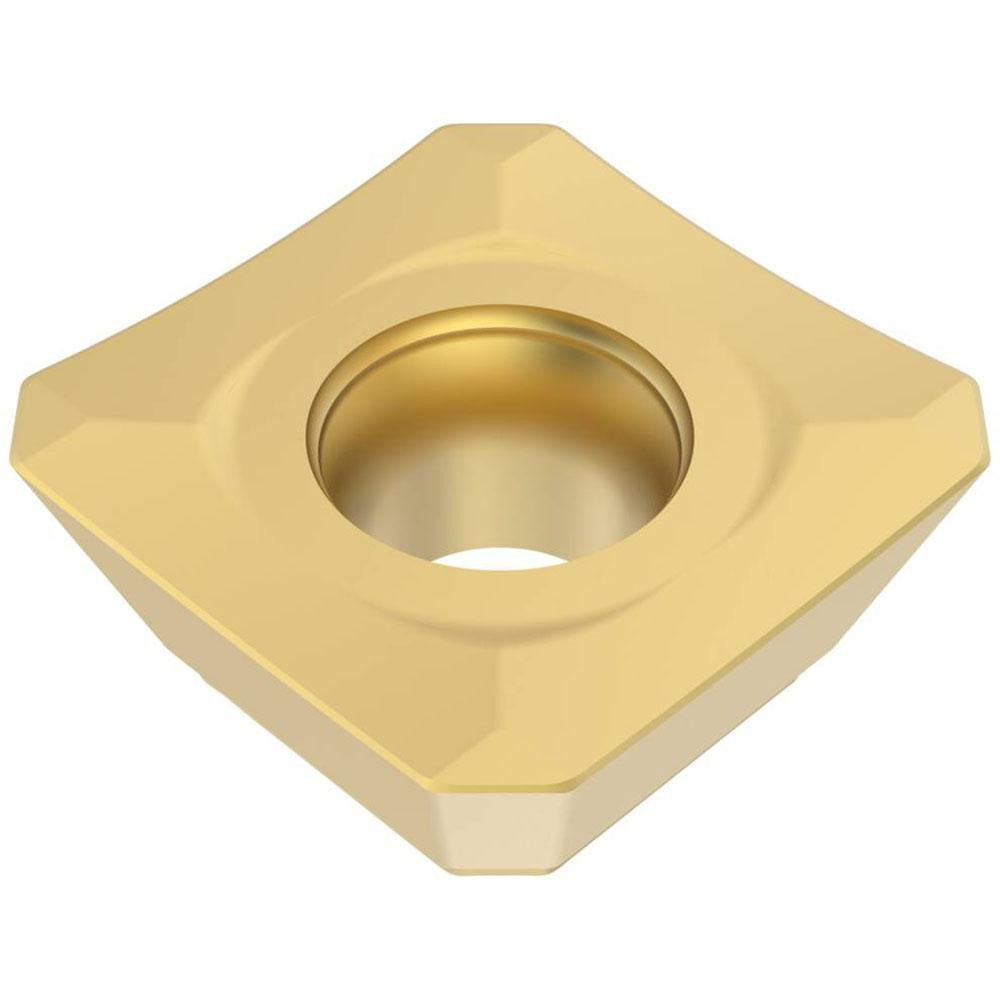

Seco 02449036 Milling Insert SEEX09T3AFTN-M08 F40M Carbide

Product Description

The SECO 02449036 is a solid carbide milling insert carrying ANSI/ISO designation SEEX09T3AFTN-M08 and manufactured to grade F40M with a fine grain carbide substrate. The insert is square in shape with a 90-degree included angle, a neutral rake, a T-Land cutting edge style, and four usable cutting edges. It measures 3/8 inch (0.3750 inches) in both length and width with a thickness of 5/32 inch (0.1563 inches). A dual-layer PVD coating of TiAlN and TiN provides thermal resistance and wear protection across a broad range of workpiece materials. Maximum depth of cut is 0.2795 inches. The insert is held in the cutter body by screw.

This insert is designed for milling operations on steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium in both roughing and semi-finishing applications. The M08 chip breaker geometry is suited for medium-duty cuts where chip control and edge stability are priorities. Compatible cutter series include R217.53-09 and R220.53-09, making this insert a direct-fit choice for machinists already running SECO SEEX-09 series tooling. It is a single-sided insert with a neutral hand, appropriate for a wide variety of milling setups in production and job-shop environments.

Key Features

• Fine grain solid carbide substrate with dual PVD coating (TiAlN and TiN) for extended tool life on hard and abrasive materials
• Four cutting edges per insert reduces per-edge tooling cost
• M08 chip breaker geometry provides reliable chip control in medium-duty milling
• T-Land cutting edge style improves edge strength and reduces chipping under interrupted cuts
• 20-degree relief angle and neutral rake suit a wide range of cut depths and feed rates
• Maximum depth of cut 0.2795 inches with a corner radius of 0.0118 inches

Compatibility

Designed for use in SECO cutter series R217.53-09 and R220.53-09. Insert style SEEX-09, size code 09T3. Conforms to ANSI and ISO standards under designation SEEX09T3AFTN-M08.

Installation Notes

Installation is performed by a machinist or toolroom technician. Ensure the cutter body is clean and free of debris before seating the insert. Secure the insert with the appropriate screw torqued per the cutter body manufacturer specification. Always verify spindle is stopped and machine is locked out before changing inserts. Do not mix worn and new inserts in the same cutter body, as uneven edge height affects surface finish and tool balance.
