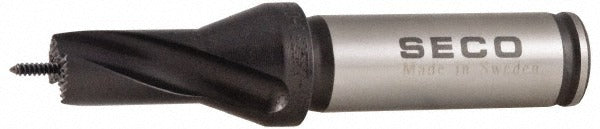

Seco 02445821 Replaceable-tip Drill 15-15.99mm SD100

Product Description

The SECO 02445821 is a replaceable-tip drill from the SD101 series, designed for precision holemaking in metalworking and machining applications. It accepts SD100 inserts, allowing the cutting tip to be swapped without replacing the full tool body. The drill covers a diameter range of 15.00 to 15.99 mm (0.5906 to 0.6295 inches) with a maximum drill depth of 0.98 inches. Overall length is 4.067 inches. Through-coolant capability is built in, directing coolant directly to the cutting zone to extend insert life and improve chip evacuation. Licensed machinists and CNC operators working in production environments will find this tool suited to their holemaking workflow.

This replaceable-tip drill is intended for use in CNC machining centers and drilling applications where consistent hole diameter and finish quality are required. The Weldon flat shank with a 5/8-inch diameter provides a secure, anti-rotation grip in compatible toolholders. The SD101 series is well established in production holemaking for steel, cast iron, and similar workpiece materials. Install this tool wherever the SD101 toolholder style and SD100 insert style are part of the existing tooling program.

Key Features

• Accepts SD100 replaceable inserts for cost-effective tip replacement without discarding the tool body
• Through-coolant design directs fluid to the cutting edge for improved chip removal and insert longevity
• Diameter range of 15.00 to 15.99 mm accommodates a range of close-tolerance hole sizes
• 5/8-inch Weldon flat shank provides positive anti-rotation engagement in the toolholder
• Meets ISO 9766 standard for through-coolant drilling tools
• SD101 series toolholder style for consistent system compatibility within the SECO modular tooling platform

Compatibility

Compatible with SD100 insert style and SD101 toolholder style. Designed as a replaceable-tip drill body for use within the SECO SD101 series tooling system.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the machine is in a safe, locked-out state before changing inserts or loading the tool into the toolholder. Confirm that the coolant through-spindle system is compatible with through-coolant tooling before use. Secure the Weldon flat shank fully into the toolholder before beginning any cutting operation.
