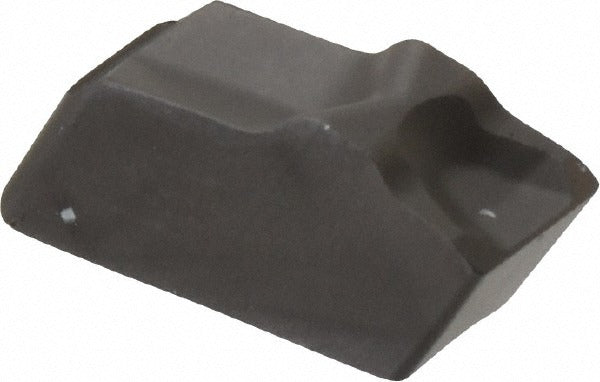

Seco 02444167 Carbide Cutoff Insert 0.161in T350M Series 150.10

Product Description

The SECO 02444167 is a solid carbide cutoff insert engineered for parting and grooving operations on CNC lathes and turning centers. It carries a T350M manufacturer grade with a CVD-applied TiCN and Al2O3 multilayer coating, delivering wear resistance and heat management at the cutting zone. The insert features a 0.161 inch cutting width, a 0.009 inch corner radius, and neutral lead and hand geometry. At 0.354 inches overall length, it seats securely via a clamp-style holding method and is sized for an insert seat size 4 carrier. Machinists and CNC tool-setup technicians install this insert in production and job-shop environments where clean, repeatable cutoff performance is required.

This insert is suited for cutoff and parting applications across a universal range of workpiece materials, including steels, stainless alloys, aluminum, and cast iron, consistent with its OD material code designation. It belongs to the Series 150.10 cutoff system and is designed for single-end use. The chipbreaker designation is 16, appropriate for chip control in standard parting depths. Typical applications include bar-feed turning machines, Swiss-type lathes, and conventional CNC turning centers equipped with compatible Series 150.10 blade bodies.

Key Features

• Solid carbide substrate with CVD TiCN and Al2O3 coating for extended tool life
• 0.161 inch cutting width with a tight width tolerance of plus or minus 0.003 inches
• 0.009 inch corner radius for precise edge geometry at the parting groove
• Neutral lead angle and neutral hand for straightforward setup in standard cutoff holders
• Chipbreaker 16 geometry aids chip evacuation during parting operations
• Material grade C5 carbide suitable for universal workpiece materials

Compatibility

Designed as a direct-fit insert for Series 150.10 cutoff and parting blade systems requiring a seat size 4, 0.161 inch cutting-width insert with clamp-style retention.

Installation Notes

Installation is performed by CNC machinists or tooling technicians. Power down and lock out the machine before seating or removing the insert. Ensure the blade body and clamp are clean and free of chips before seating the insert to maintain proper clamping force and insert stability. Follow the blade body manufacturer torque recommendations for the clamp screw, and verify insert seating before returning the machine to operation.
