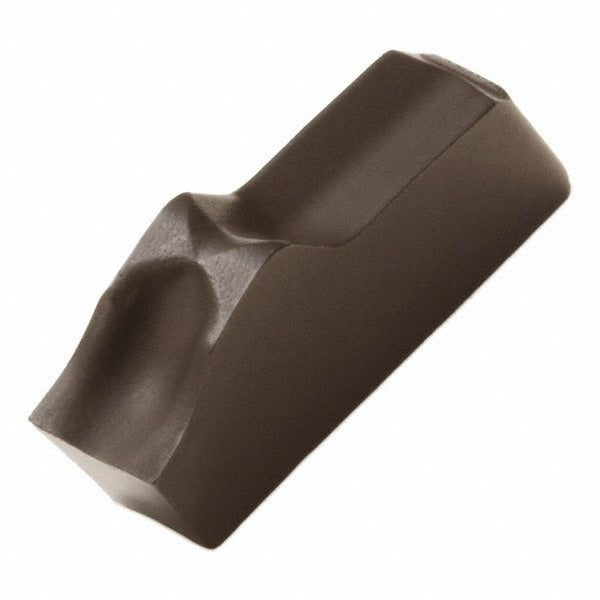

Seco 02444166 Carbide Cutoff Insert T350M Series 150.10

Product Description

The SECO 02444166 is a solid carbide cutoff insert designed for parting and grooving operations on CNC and manual turning equipment. Manufactured to Series 150.10 specifications, it carries a T350M grade designation and is finished with a CVD-applied TiCN and Al2O3 coating for extended tool life in demanding cutting conditions. The insert features a 0.161 inch cutting width, a 0.009 inch corner radius, and a neutral lead angle with zero relief angle. It is held in place by a clamp-style insert seat and is rated for single-end use. This insert is sized for an insert seat size 4 and is compatible with the corresponding Series 150.10 toolholder system. Licensed machinists and CNC lathe operators are the typical end users.

This insert is suited for cut-off and parting operations across a universal range of workpiece materials, as indicated by the OD primary workpiece material code. It performs in both production and job-shop environments where consistent groove width and clean parting are required. The chipbreaker designation 14 provides chip control geometry appropriate for the Series 150.10 application envelope. The C5 material grade classification places this insert in the ISO P, M, and K range, making it broadly applicable across steel, stainless, and cast iron parting work.

Key Features

• Solid carbide substrate with CVD-applied TiCN and Al2O3 multilayer coating for wear and heat resistance
• 0.161 inch cutting width with a width tolerance of plus or minus 0.003 inches for consistent groove sizing
• 0.009 inch corner radius for controlled edge geometry on parted workpieces
• Neutral lead angle and neutral hand orientation for straight cut-off applications
• Chipbreaker style 14 provides designed chip control geometry for the Series 150.10 system
• Clamp-style holding method for secure, repeatable seating in compatible toolholders

Compatibility

Designed for use with Series 150.10 clamping toolholders that accept an insert seat size 4. Specific toolholder compatibility should be verified against the Series 150.10 system specifications before installation.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Power down and lock out the machine before changing inserts. Inspect the insert pocket and clamp for wear or debris before seating the new insert. Do not exceed the cutting parameters recommended for T350M grade and the specific workpiece material being machined.
