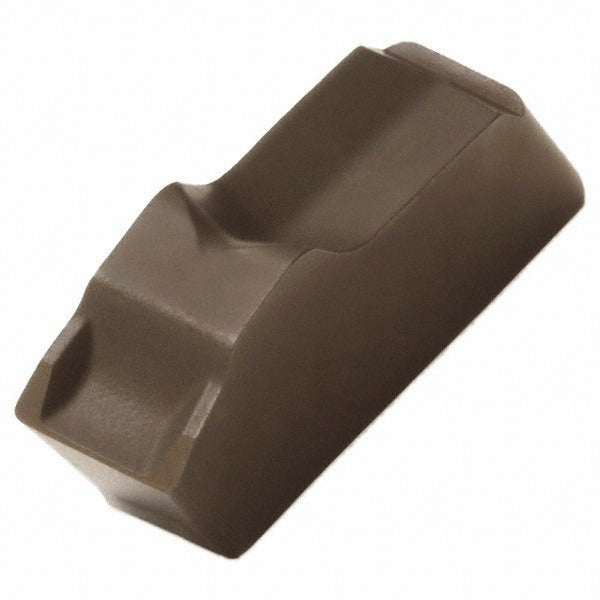

Seco 02444156 Carbide Cutoff Insert 0.122in T350M Series 150.10

Product Description

The SECO 02444156 is a solid carbide cutoff insert designed for parting and grooving operations on CNC lathes and turning centers. It carries a T350M manufacturer grade with a CVD-applied TiCN and Al2O3 coating for wear resistance and thermal stability at the cutting edge. The insert measures 0.122 inches in cutting width and 0.354 inches in overall length, with a neutral lead angle and a corner radius of 0.008 inches. A relief angle of 0 degrees and chipbreaker designation 12 complete the geometry profile. The insert is held by a clamping method and is rated for universal primary workpiece material under OD turning applications. Machinists and CNC tooling specialists install this insert in Series 150.10 compatible toolholders.

This insert is suited for cutoff and parting operations in both production and job-shop turning environments. The neutral hand and neutral lead angle make it adaptable across a range of bar-fed and chuck-held workpiece setups. Its universal material compatibility rating means it performs across steels, stainless, cast iron, and non-ferrous materials, though optimal feeds and speeds should be verified against the T350M grade chart for the specific workpiece. This is a single-end insert with an insert seat size of 3, sold individually with a minimum order quantity of 10 units.

Key Features

• T350M grade solid carbide with CVD TiCN and Al2O3 multilayer coating for extended tool life
• 0.122 inch cutting width with a width tolerance of plus or minus 0.003 inches
• Neutral lead angle and neutral hand for flexible setup orientation
• Chipbreaker designation 12 for controlled chip evacuation during parting
• Clamp-style insert holding for secure seating in Series 150.10 toolholders
• C5 material grade classification suitable for a broad range of workpiece materials

Compatibility

Designed for use with Series 150.10 cutoff and grooving toolholders that accept insert seat size 3. Verify toolholder compatibility against the Series 150.10 system specifications before ordering.

Installation Notes

Installation of carbide cutoff inserts should be performed by a qualified machinist or CNC tooling technician. Always power down and lock out the machine spindle before seating or removing inserts. Use the correct torque wrench and clamping screw specified for the toolholder to avoid insert cracking or poor seating. Inspect the insert seat and clamp for wear or debris before each installation.
