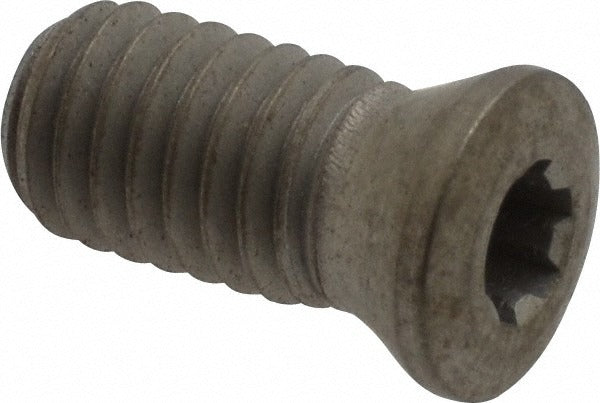

Seco 02436215 Indexable Lock Screw M6 TP20 Torx Plus Milling

Product Description

The SECO 02436215 is a countersunk lock screw designed to secure indexable inserts in milling toolholders. It features an M6 thread and a Torx Plus TP20 drive, which delivers higher torque transfer and reduced cam-out compared to standard Torx interfaces. The screw measures 13.00 mm in overall length and is used by machinists and toolroom technicians to fasten cutting inserts firmly in place during milling operations. Proper clamping force at the insert seat is critical to tool life and surface finish, making the correct lock screw selection essential for any indexable milling setup.

This lock screw is intended for indexable milling applications where precise insert retention is required. It is compatible with the R218.19-1.50/2.00 toolholder style and is driven with a T20P-4 key driver. The countersunk head design seats flush within the toolholder pocket, keeping the clamping profile low and avoiding interference with the workpiece or chip flow. It is sold individually and is a common service item kept on hand by shops running high-volume milling operations.

Key Features

• M6 thread for secure insert clamping in compatible milling toolholders
• Torx Plus TP20 drive reduces cam-out and extends key driver life
• Countersunk head seats flush within the toolholder pocket
• 13.00 mm overall length sized for R218.19-1.50/2.00 toolholder compatibility
• Requires T20P-4 key driver for proper installation and removal
• Sold individually, suitable for single-screw replacement or stocking as a service part

Compatibility

Compatible with the R218.19-1.50/2.00 toolholder style and 218.19 250 SCE. 12 indexable inserts. Driven with a T20P-4 key driver. Designed for indexable milling insert applications.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician with the machine powered down and the spindle fully stopped. Use only the specified T20P-4 Torx Plus key driver to avoid stripping the drive recess. Do not substitute a standard Torx key, as the Torx Plus profile requires a matched driver for proper engagement. Inspect the thread bore in the toolholder for damage or contamination before installing a replacement screw.
