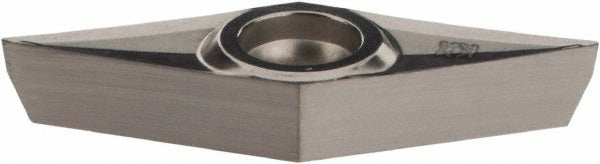

Seco 02430465 Turning Insert VCGT330.5F-AL Kx Carbide

Product Description

The SECO 02430465 is a solid carbide, uncoated turning insert in the VCGT series, designed for high-performance machining of non-ferrous metals. Carrying the KX manufacturer grade and an AL chip breaker geometry, this insert features a 35-degree diamond shape (V-code) with a positive rake angle and sharp cutting edge style. The inscribed circle measures 0.375 inches, the corner radius is 0.0079 inches, and the insert thickness is 0.1874 inches. With two cutting edges and a screw-type holding method, it is suited for applications where tool life and surface finish consistency on aluminum and other non-ferrous materials are the primary concerns. Licensed machinists and CNC tool setup technicians typically specify this insert for light to medium turning operations.

This insert is intended for use on non-ferrous metals, including aluminum, copper, and similar materials. Its AL chip breaker and bright, uncoated carbide substrate are optimized for the low cutting temperatures and higher speeds characteristic of non-ferrous turning. Multi-use applications supported by this insert geometry include back turning, facing, profiling, and general turning. The insert conforms to both ANSI and ISO standards, with an ISO code of VCGT160402F-AL and an industry standard number of VCGT330.5F-AL. It is compatible with toolholders designed for VCGT-series inserts with the appropriate seat geometry.

Key Features

• Solid carbide substrate, uncoated (bright finish) for non-ferrous metal cutting
• 35-degree diamond insert shape with positive rake for sharp, low-force cutting
• AL chip breaker geometry optimized for aluminum and non-ferrous materials
• Two cutting edges per insert for extended tool economy
• Screw-type insert holding method for secure, repeatable indexing
• Supports back turning, facing, profiling, and turning in a single insert style

Compatibility

Designed for use in VCGT-series screw-on toolholders. Compatible with material grades N15, N20, and N25. Conforms to ANSI and ISO standards; ISO designation VCGT160402F-AL. Verify toolholder seat geometry and insert pocket size before installation.

Installation Notes

Installation is performed by qualified machinists or CNC tool setup personnel. Always power down and lock out the machine before indexing or replacing inserts. Use the appropriate torx or hex key to secure the clamping screw to the toolholder manufacturer's specified procedure — do not overtighten. Inspect the insert pocket and seating surface for chips or debris before seating the insert to ensure proper contact and runout control.
