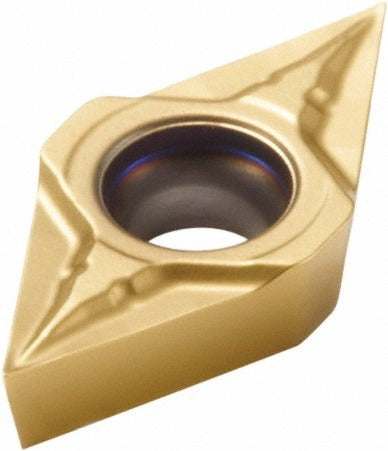

Seco 02430339 Dcgt 21.50-F1 CP500 Turning Insert 55 Diamond

Product Description

The SECO 02430339 is a solid carbide turning insert in the DCGT 21.50-F1 series, designed for precision metal-removal operations on CNC and manual lathes. It carries a multilayer TiAlN and TiN PVD coating under the CP500 grade designation, which delivers thermal resistance and wear protection at the cutting edge. The insert features a 55-degree diamond shape, a 0.25-inch inscribed circle, and a sharp cutting edge with an F1 chip breaker geometry. Corner radius measures 0.0039 inches, making it well suited for light finishing passes where tight tolerances and fine surface finish are required. Licensed machinists and CNC operators are the primary installers of this insert.

This insert is rated primarily for stainless steel (ISO material code M) and is also applicable to steel, cast iron, super-alloys, and titanium. The F1 chip breaker geometry and sharp edge support back turning, boring, facing, and general turning operations. Its positive rake angle and neutral hand orientation provide broad setup flexibility across common toolholders that accept DCGT-style inserts. It is manufactured to ANSI and ISO standards, with an ISO designation of DCGT070201-F1 and an industry standard number of DCGT21.50-F1. Material grades M10, M20, and M30 are supported. Package quantity is 1 insert; minimum order quantity is 10 units.

Key Features

• CP500 grade with multilayer TiAlN and TiN PVD coating for wear resistance on stainless steel and steel
• 55-degree diamond insert shape (code D) with sharp cutting edge and F1 chip breaker
• 0.0039-inch corner radius for fine finishing and tight-tolerance applications
• Positive rake, neutral hand — compatible with screw-holding DCGT toolholders
• 2 cutting edges per insert; multi-use applications include back turning, boring, facing, and turning
• Manufactured to ANSI and ISO standards; ISO code DCGT070201-F1

Compatibility

Designed for use in screw-clamping toolholders that accept DCGT-series inserts. Compatible with ISO material grades M10, M20, and M30. Primary workpiece material is stainless steel; secondary workpiece materials include steel, cast iron, super-alloys, and titanium.

Installation Notes

Installation is performed by a qualified machinist or CNC toolroom technician. Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torque wrench and manufacturer-specified clamping screw to seat the insert fully in the pocket without over-torquing. Inspect the insert pocket and clamping screw for wear or damage before installing a new insert.
