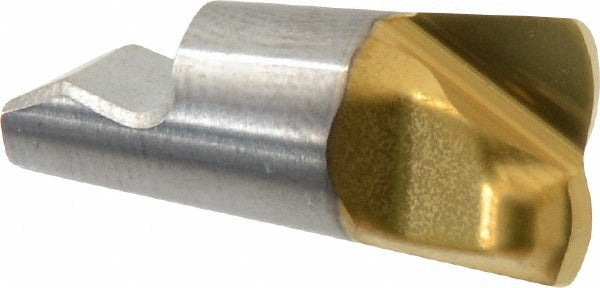

Seco 02425001 Milling Tip Carbide 2 Flute MM10 Series

Product Description

The SECO 02425001 is an end replaceable milling tip designed for slotting operations in the Minimaster MM10 tooling system. Made from carbide with a TiAlN and TiN PVD coating, it delivers wear resistance and thermal stability across a range of demanding workpiece materials. The tip features a 0.197-inch cutting diameter, a maximum depth of cut of 0.017 inches, and a functional length of 0.335 inches. With a right-hand cut orientation and MD08 chipbreaker geometry, it is suited for controlled chip evacuation in tight slotting applications. Licensed machinists and CNC operators in production and job shop environments are the primary installers of this insert style.

This milling tip is used in slotting applications where close tolerances and chip control are critical. The MM10 series Minimaster platform is common in small-diameter milling work on steel, stainless steel, cast iron, superalloys, titanium, and hard materials. The F30M grade and PVD coating make it appropriate for both roughing and semi-finishing passes on these material groups. It carries a 90-degree lead angle and 0-degree chamfer angle, which suits full-width slotting cuts at shallow axial depths.

Key Features

• Carbide construction with TiAlN and TiN PVD coating for thermal and wear resistance
• 0.197-inch cutting diameter with 0.394-inch cutting width
• Maximum depth of cut: 0.017 inches
• MD08 chipbreaker geometry for controlled chip formation in slotting
• Right-hand cut with 90-degree lead angle and 0-degree chamfer angle
• Compatible with primary workpiece materials including steel, stainless steel, cast iron, superalloys, titanium, and hard materials
• Sold individually; minimum order quantity of 2 units

Compatibility

Designed for use in the SECO Minimaster MM10 series tooling system with MM10-series holders. Insert size designation is 10.50-HF. Compatible workpiece material grades include P20, P30, M10, M20, K20, K30, and H10 per the manufacturer grade classification system.

Installation Notes

Installation and replacement of end replaceable milling tips should be performed by a qualified machinist or CNC technician with the machine fully stopped and in a locked-out, de-energized state. Use the appropriate torque wrench and SECO-specified tooling key to seat the tip securely in the Minimaster holder — do not overtighten by hand. Confirm tip seating and runout before returning the spindle to service. Refer to the SECO Minimaster assembly instructions for proper clamping procedure.
