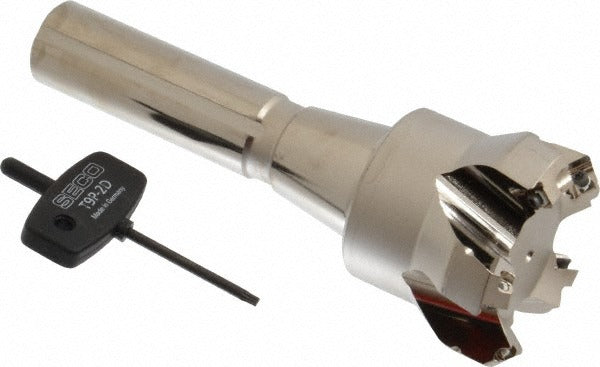

Seco 02422262 Indexable Chamfer End Mill 2.36in R8

Product Description

The SECO 02422262 is an indexable chamfer end mill from the QuattroMill series, designed for face and shoulder milling applications in metalworking and machining environments. It accepts five SE.. 09T3 style inserts secured by screw clamping, providing a rigid and repeatable cutting setup. The tool features a 45-degree lead angle and a maximum cutting diameter of 2.36 inches, with an overall length of 6.02 inches. The R8 taper shank mounts directly to R8-compatible spindles. This tool is installed and operated by machinists and CNC mill operators working in production or job-shop settings.

The 02422262 is suited for milling flat surfaces, chamfers, and angled faces on ferrous and non-ferrous workpieces. The QuattroMill toolholder style R217.53 is engineered for stable, multi-insert cutting at elevated feed rates. It supports a maximum depth of cut of 0.18 inches and runs up to 15,800 RPM. Typical applications include roughing and semi-finishing passes on vertical mills and CNC machining centers equipped with R8 spindle tapers.

Key Features

• 45-degree lead angle for controlled chamfering and face milling
• Accepts five SE.. 09T3 indexable inserts with screw-lock clamping
• Maximum cutting diameter of 2.36 inches, minimum of 1.575 inches
• R8 taper shank for direct mounting to R8-spindle machines
• Maximum spindle speed of 15,800 RPM
• Maximum depth of cut of 0.18 inches per pass
• QuattroMill series toolholder style R217.53 for rigid multi-insert performance

Compatibility

Compatible with SE.. 09T3 insert style (Compatible Insert Size Code: SE.X09T3). Designed for use with R8-taper spindle milling machines and machining centers. Toolholder series is R217.53 QuattroMill.

Installation Notes

Installation should be performed by a qualified machinist with the machine powered down and spindle locked before mounting or removing the toolholder. Secure the R8 shank using the appropriate drawbar torque procedure for the host machine per the machine manufacturer specifications. Verify insert seating and screw torque before operation. Do not exceed the rated maximum RPM of 15,800 under any cutting condition.
