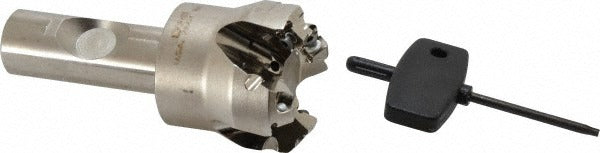

Seco 02422261 Indexable Chamfer End Mill 1.65in Quattromill

Product Description

The SECO 02422261 is an indexable chamfer end mill designed for professional milling applications in metalworking and machining operations. Built on the QuattroMill platform, it accepts four SE.. 09T3 style inserts secured by screw clamp, delivering stable, repeatable cutting performance across a wide range of materials. Key specs include a maximum cutting diameter of 1.65 inches, a 3/4 inches Weldon Flat shank for secure machine spindle retention, and a maximum depth of cut of 0.18 inches. With a 45-degree lead angle, this toolholder is suited to chamfering, beveling, and angled face milling operations. Licensed machinists and CNC setup techs are the primary installers of this tool.

The 02422261 is used in CNC machining centers and manual milling machines where precise chamfer geometry is required. Its Weldon Flat shank fits standard side-lock toolholders commonly found in both horizontal and vertical milling setups. The toolholder style is R217.53, and the tool is compatible with coolant-through delivery, making it suitable for higher-speed operations or harder workpiece materials where heat management is critical. Typical applications include chamfering bored holes, part edges, and mating surfaces in production or job-shop environments.

Key Features

• 45-degree lead angle for consistent chamfer and bevel milling geometry
• Accepts four SE.. 09T3 indexable inserts with screw-clamp retention
• Coolant-through capability supports higher spindle speeds and extended insert life
• Weldon Flat shank provides positive drive and resistance to pullout in side-lock holders
• Maximum spindle speed of 19,800 RPM supports high-productivity cutting cycles
• QuattroMill series toolholder style R217.53 for consistent insert seating and repeatability

Compatibility

Compatible with SE.. 09T3 insert style (compatible insert size code SE.X09T3). Designed for use with R217.53 series toolholders. Fits standard 3/4 inches Weldon Flat side-lock holders on CNC and manual milling machines.

Installation Notes

Installation and setup should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the machine is in a safe, locked-out state before mounting or removing the toolholder. Torque insert screws according to the insert manufacturer's specifications printed in the tooling documentation supplied with the product. Verify runout with a dial indicator after mounting before beginning any cutting operation.
