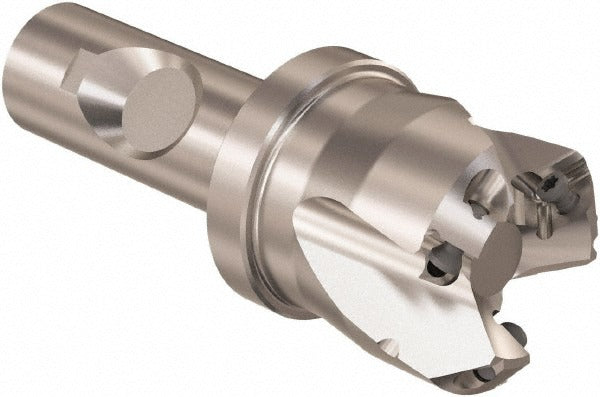

Seco 02422260 Indexable Chamfer End Mill 1.38in Quattromill

Product Description

The SECO 02422260 is an indexable chamfer end mill designed for precision milling operations in metal cutting environments. Built around the QuattroMill platform, this tool accepts three SE.. 09T3 style inserts secured by screw clamping, providing stable cutting at a 45-degree lead angle. The cutting diameter ranges from 0.98 inches minimum to 1.38 inches maximum, with a maximum depth of cut of 0.18 inches. Rated to 22,400 RPM, it suits high-speed finishing and chamfering passes on CNC machining centers. The Weldon flat shank provides positive drive engagement and resists pullout under demanding feed conditions. Licensed machinists and CNC tooling technicians are the primary installers and operators of this tool.

This end mill is suited for milling chamfers, bevels, and angled features on ferrous and non-ferrous workpieces in job shop, production, and aerospace machining environments. It mounts in toolholders conforming to the R217.53 style and is compatible with machining centers equipped with coolant-through spindle capability. The Weldon flat shank accommodates standard side-lock holders with 3/4 inch bore size. This configuration is typical in operations requiring repeatable insert indexing without full tool replacement.

Key Features

• 45-degree lead angle for chamfering and angular milling passes
• Accepts three SE.. 09T3 indexable inserts with screw-lock clamping
• Coolant-through capability for chip evacuation and thermal control
• Maximum spindle speed of 22,400 RPM for high-speed machining
• Weldon flat shank prevents rotational slippage under heavy cuts
• QuattroMill series toolholder compatibility for standardized setup

Compatibility

Compatible with R217.53 style toolholders and accepts SE.. 09T3 insert style (compatible insert size code SE.X09T3). Designed for use in machining centers with 3/4 inch Weldon flat shank side-lock holders.

Installation Notes

Installation and setup should be performed by a qualified CNC machinist or tooling technician. Power down and lock out the machine spindle before inserting or indexing inserts. Torque insert screws per the insert manufacturer tooling documentation supplied with the inserts. Verify runout with a dial indicator after mounting before initiating a cutting pass.
