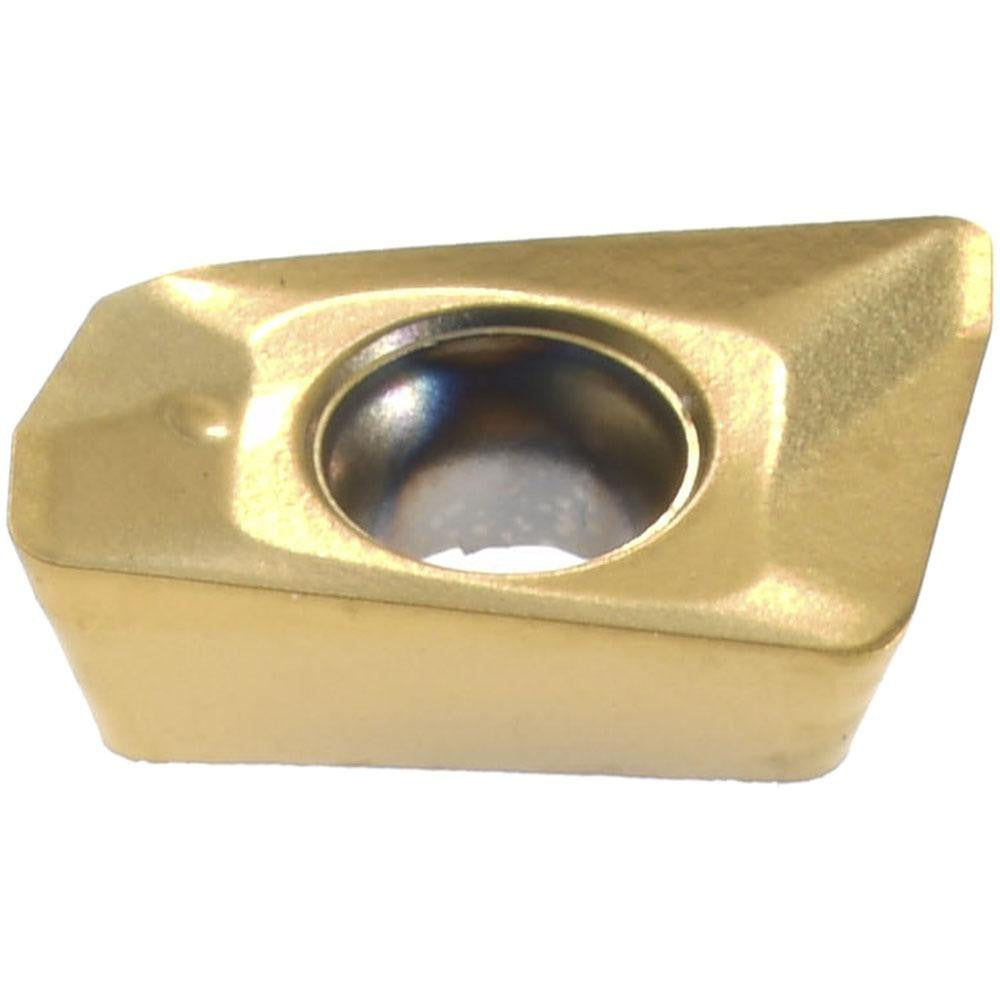

Seco 02421531 Milling Insert XOMX060204R-M05 F30M Carbide

Product Description

The SECO 02421531 is a solid carbide milling insert carrying the ANSI/ISO designation XOMX060204R-M05 in manufacturer grade F30M. The insert is parallelogram-shaped with a 90-degree included angle and a right-hand cutting orientation. It features a positive rake angle of 20.2 degrees with a honed cutting edge style, and is finished with a dual PVD coating of TiAlN and TiN for heat and wear resistance. With two cutting edges and a maximum depth of cut of 0.2165 inches, this insert is suited for productive face and shoulder milling operations in ferrous and non-ferrous materials. Licensed machinists and CNC tooling specialists are the primary installers.

This insert is designed for use in steel, stainless steel, cast iron, and hard materials, covering ISO workpiece material codes P, M, K, and H. It fits within the XOMX-06 series and is compatible with cutter series R217.69-06 toolholders. The M05 chip breaker geometry supports general-purpose milling across a range of feed rates and cut depths, making it applicable in both production shop and maintenance machining environments handling a variety of alloy and ferrous workpiece materials.

Key Features

• Solid carbide micrograin substrate for extended tool life in demanding cuts
• PVD-applied TiAlN and TiN dual coating for thermal and abrasion resistance
• Positive rake angle of 20.2 degrees reduces cutting forces on the workpiece
• Honed cutting edge style improves edge stability and reduces chipping risk
• Two usable cutting edges per insert for cost efficiency
• M05 chip breaker optimized for steel and stainless steel milling applications

Compatibility

Compatible with SECO cutter series R217.69-06 toolholders. ANSI and ISO code XOMX060204R-M05. Designed for use with workpiece materials including steel, stainless steel, cast iron, and hard materials.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before seating or replacing inserts. The insert is screw-held; use the appropriate torx or hex key to the toolholder manufacturer's specified procedure without overtightening the clamping screw. Inspect the insert pocket and seating surface for chips or debris before installation to ensure proper seating and runout.
