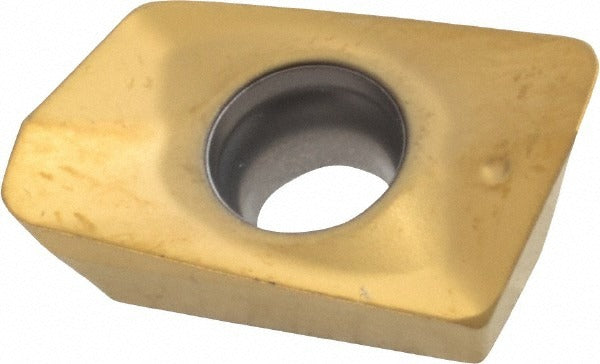

Seco 02418292 Milling Insert XOMX180616TR-M14 F40M Carbide

Product Description

The SECO 02418292 is a solid carbide milling insert designated ANSI/ISO code XOMX180616TR-M14 in manufacturer grade F40M. It features a parallelogram shape with a 90-degree included angle, a positive rake geometry with a T-Land cutting edge style, and a 15-degree rake angle. The insert measures 0.6693 inches in length, 0.4409 inches in inscribed circle diameter, and 0.2520 inches in thickness. A PVD-applied TiAlN plus TiN dual coating delivers wear resistance and thermal stability across a broad range of workpiece materials. The M14 chip breaker geometry supports medium-duty milling operations. This insert is installed by machinists and tooling technicians in CNC and manual milling applications.

The SECO 02418292 is suited for face milling, shoulder milling, and general-purpose metal removal in production and job-shop environments. It is designed for use with the SECO R217.69-18 and R220.69-18 cutter series bodies. Primary workpiece materials include steel, cast iron, superalloys, and titanium. Secondary applications cover cast iron and non-ferrous metals. The right-hand, single-sided design and screw-holding method make it compatible with standard XOMX-18 series toolholders. It is appropriate for both roughing and finishing passes in light to medium depths of cut.

Key Features

• PVD-applied TiAlN and TiN dual coating for extended tool life on steel, cast iron, superalloys, and titanium
• M14 chip breaker geometry optimized for medium-duty milling with controlled chip flow
• Positive rake angle of 15 degrees reduces cutting forces and heat generation
• T-Land cutting edge style improves edge strength and reduces chipping risk
• Maximum depth of cut and cutting edge effective length both at 0.6693 inches
• Corner radius of 0.0630 inches for surface finish consistency at pass transitions
• Screw-holding insert mount for secure seating in XOMX-18 series cutter bodies

Compatibility

Designed for use with SECO cutter series R217.69-18 and R220.69-18. Fits standard XOMX-18 series milling bodies using screw-style insert retention.

Installation Notes

Installation is performed by a qualified machinist or tooling technician. Power down and lock out the machine spindle before seating or replacing inserts. Use the correct Torx or hex key for the clamping screw as specified by the cutter body manufacturer — do not overtighten or substitute fasteners. Inspect the insert pocket and seating surface for chips or debris before installing a new insert to ensure proper seating and runout.
