Seco 02411093 Turning Insert Lcex CP500 Tialn Tin

Product Description

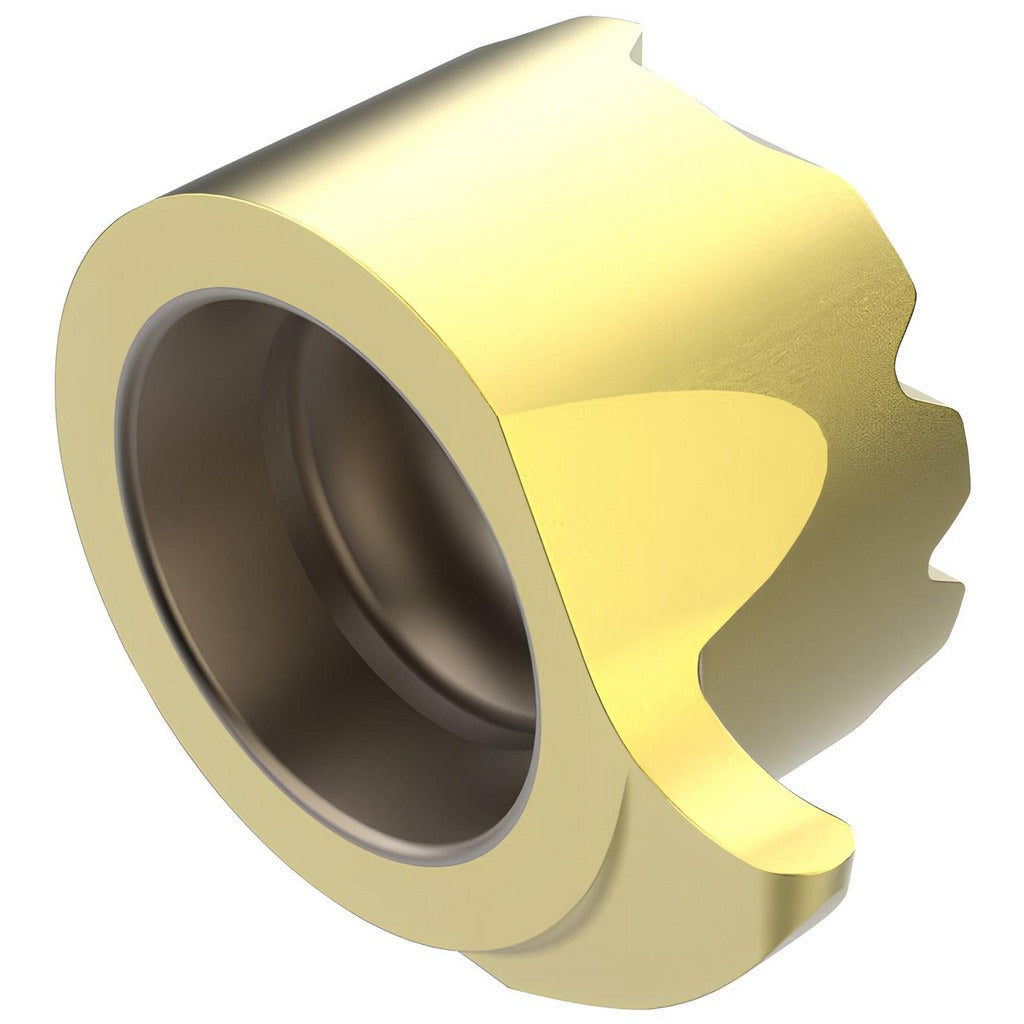

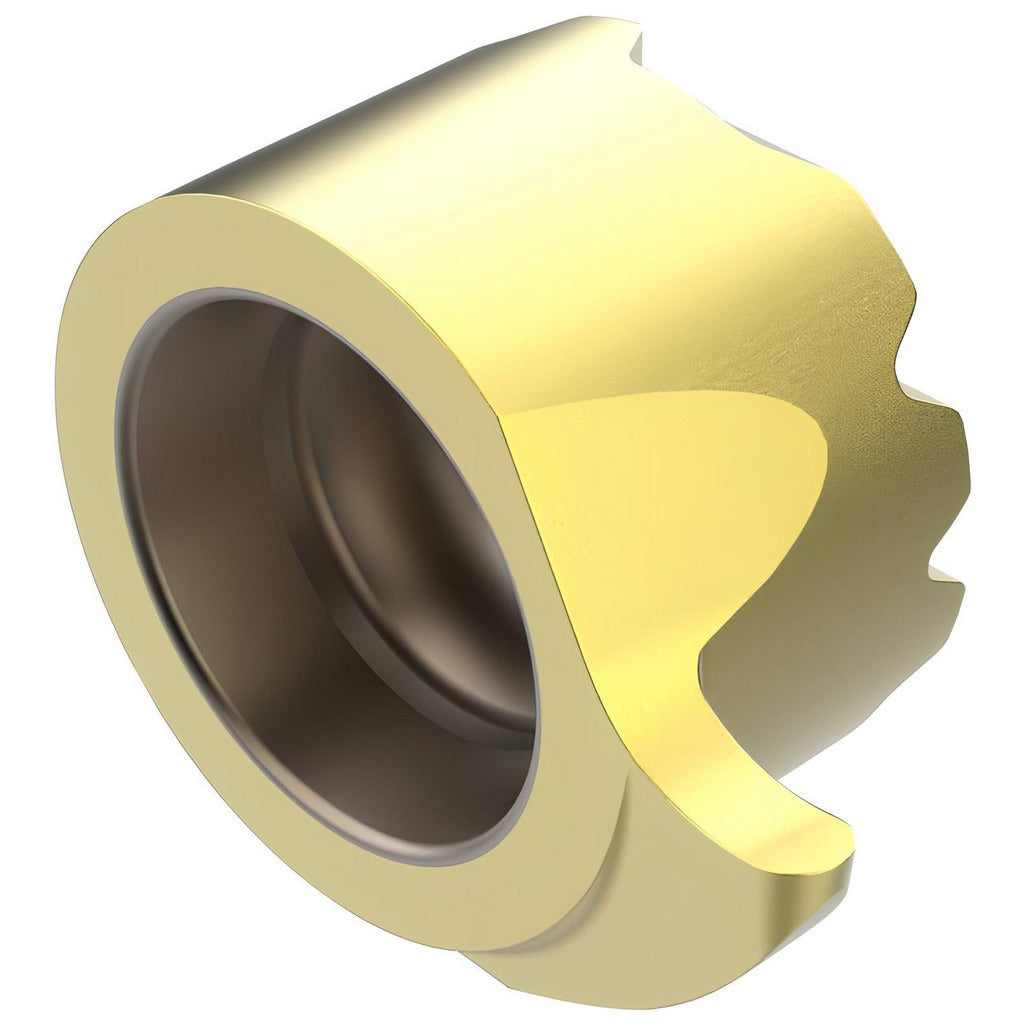

The SECO 02411093 is a solid carbide turning insert designed for precision metal-turning operations on CNC lathes and manual turning centers. Manufactured to the LCEX insert style with an ISO code of LCEX110506-0120R-R, this insert features a PVD-applied TiAlN and TiN dual coating that extends tool life in demanding cutting conditions. The 90-degree irregular shape and right-hand orientation make it suited for specific toolholder configurations requiring that geometry. It measures 0.421 inches in length with a 0.024-inch corner radius and supports a maximum depth of cut of 0.102 inches. Insert grade CP500 is a micrograin carbide grade. Screw-clamping is the specified holding method.

This insert is intended for use in production and job-shop turning applications where consistent chip control and coating durability are required. The X chip breaker geometry assists in managing chip flow during interrupted or continuous turning passes. It is appropriate for use by machinists and tooling specialists working on ferrous and non-ferrous materials in environments where PVD-coated carbide inserts are specified. Insert size code 110506 corresponds to standard ANSI and ISO indexable insert sizing conventions.

Key Features

• Solid carbide construction with micrograin substrate for edge stability
• PVD-applied TiAlN and TiN dual coating for extended wear resistance
• LCEX insert style with 90-degree irregular shape, right-hand orientation
• X chip breaker geometry for controlled chip evacuation
• Screw-clamp holding method for secure seating in compatible toolholders
• Meets ANSI and ISO indexable insert standards

Compatibility

Designed for use in LCEX-style screw-clamp toolholders accepting insert size code 110506 per ANSI and ISO indexable insert standards. Verify toolholder geometry and hand orientation before installation.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician familiar with indexable insert toolholders. Power down and lock out the machine spindle before seating or indexing the insert. Use the appropriate torque wrench and clamping screw specified by the toolholder manufacturer — do not over-torque the clamping screw, as this can fracture the insert. Inspect the insert pocket and clamping screw for wear or damage before each use.
