Seco 02410952 Threading Insert CP500 Carbide 60 Degree

Product Description

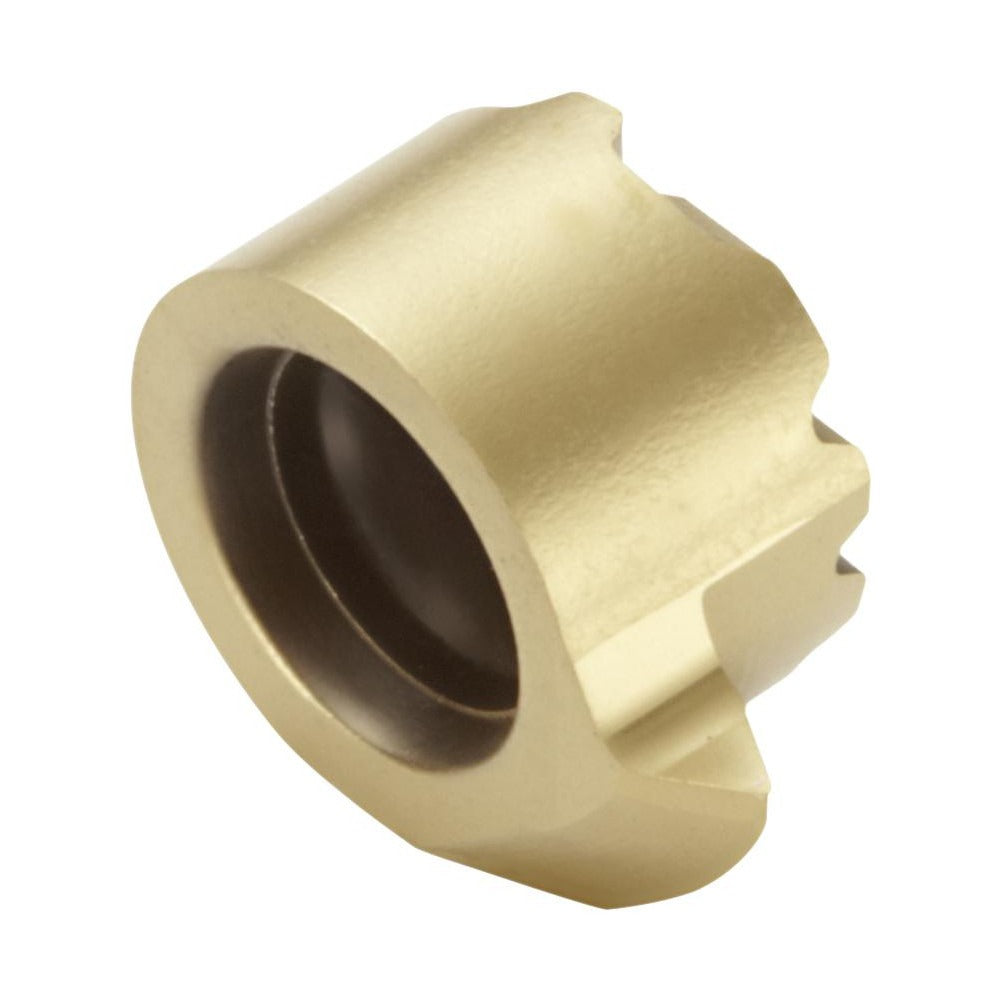

The SECO 02410952 is a carbide threading insert designed for internal thread cutting operations in precision machining environments. Manufactured to the CP500 grade with a micrograin carbide substrate and PVD coating, this insert delivers consistent thread form on small-diameter bores. It follows a partial profile 60-degree included angle standard and is configured for right-hand cutting. The LCEX insert style with an 0804 size designation fits Mini Shaft series toolholders. With a tip-to-top height of 0.029 inches and a corner radius of 0.003 inches, it is suited for fine threading work where dimensional control is critical. Machinists and CNC operators in job shops and production environments are the primary users.

This insert is applied to internal threading passes on small-diameter workpieces where pitch range falls between 0.75 and 1.25 mm or 20 to 36 TPI. The Mini Shaft series designation indicates compatibility with compact boring and threading bar systems. It is well-suited for threading operations on stainless steels, alloy steels, and similar materials where a PVD-coated micrograin carbide grade provides wear resistance and edge stability. Typical applications include hydraulic fittings, precision shafts, and small bore components requiring consistent thread geometry across production runs.

Key Features

• CP500 manufacturer grade with micrograin carbide substrate for extended tool life
• PVD coating process provides wear resistance and edge toughness
• Partial profile 60-degree thread form covers a pitch range of 0.75 to 1.25 mm and 20 to 36 TPI
• Right-hand internal threading configuration
• LCEX insert style in 0804 size for Mini Shaft series tooling systems
• Corner radius of 0.003 inches supports precise thread root geometry

Compatibility

Designed as an OEM-style replacement insert for LCEX-style Mini Shaft series internal threading toolholders accepting 0804 size inserts with a 60-degree partial profile form.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Ensure the machine spindle is fully stopped and the toolholder is secure before seating or replacing the insert. Use the correct torx or clamp screw driver specified by the toolholder manufacturer to avoid over-torquing the clamp. Verify insert seating and orientation before initiating a threading pass.
