Seco 02206126 Threading Insert 16NR 12 Tpi Acme CP500

Product Description

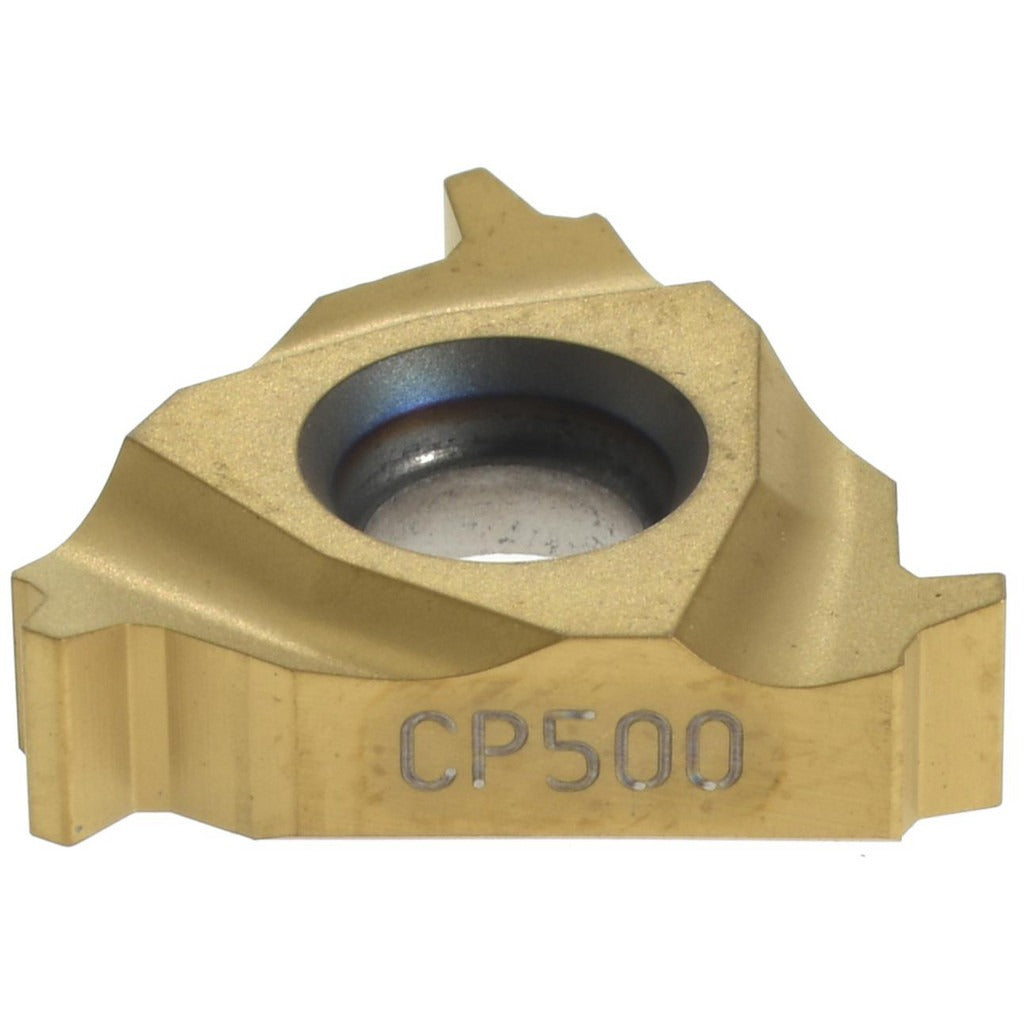

The SECO 02206126 is a solid carbide laydown threading insert designed for right-hand internal Acme thread cutting at 12 threads per inch. It carries the CP500 manufacturer grade with a PVD-applied TiAlN/TiN coating that improves wear resistance and tool life across a broad range of workpiece materials. The insert follows the 16NR style with a 9.53 mm inscribed circle and a thickness of 3.47 mm (0.1366 inches). The 29-degree included angle matches the Acme thread form standard. Machinists and toolroom technicians working on CNC or manual lathes select this insert for precise internal threading operations on lead screws, power transmission components, and similar threaded features.

This insert is suited for internal Acme thread production in both job-shop and production turning environments. The CP500 grade with universal primary workpiece material compatibility covers cast iron, steel, stainless, non-ferrous, and superalloy workpiece materials, making it a versatile option across machining departments. It fits into the Snap-Tap series toolholding system and conforms to ISO insert standards. Typical applications include threading bores, nuts, and internally threaded mechanical components where the Acme profile is specified.

Key Features

• 16NR insert style with 12 TPI Acme thread form and 29-degree included angle
• Solid carbide construction in CP500 grade for extended cutting performance
• PVD-applied TiAlN/TiN coating for improved wear resistance across multiple material types
• Right-hand, internal thread orientation for bore threading operations
• 9.53 mm inscribed circle with ISO-standard geometry
• Universal workpiece material compatibility covering K, M, N, P, and S material groups

Compatibility

Designed for use with Snap-Tap series toolholders that accept the 16NR laydown insert style. Conforms to ISO threading insert standards.

Installation Notes

This insert is installed and indexed by qualified machinists or toolroom technicians following standard CNC or manual lathe toolchange procedures. Power down and lock out the machine spindle before seating or replacing the insert. Verify the insert is fully seated and the clamping screw is properly torqued per the toolholder manufacturer specification before beginning a cut. Inspect the insert edge condition and thread-form geometry with each indexing cycle to maintain tolerance control.
