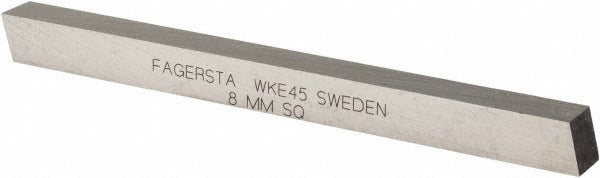

Seco 02036 Tool Bit Blank Cobalt WKE45 Square 8mm

Product Description

The SECO 02036 is a square tool bit blank machined from WKE45-grade cobalt high-speed steel. Measuring 8 mm (approximately 0.315 inches) in width, 8 mm in height, and 100 mm (approximately 3.937 inches) in overall length, this blank provides the raw stock machinists and tool grinders need to produce custom single-point lathe tools, boring bars, and specialty cutting tools. The WKE45 cobalt grade delivers elevated hot hardness and wear resistance compared to standard M2 high-speed steel, making it well suited for grinding tool profiles intended to cut tough ferrous alloys, stainless steel, and high-temperature materials.

This blank is used in tool-and-die shops, machine shops, and maintenance environments where off-the-shelf insert tooling cannot match a custom profile requirement. Machinists grind the blank on a surface grinder or tool grinder to produce the relief angles, rake angles, and nose geometry needed for a specific turning, facing, or threading operation. The square cross-section simplifies clamping in a magnetic chuck or V-block fixture during the grinding process.

Key Features

• WKE45 cobalt high-speed steel grade for improved hot hardness and wear resistance
• Square cross-section: 8 mm width by 8 mm height for straightforward fixturing
• 100 mm overall length provides sufficient stock for grinding multiple tool profiles or resharpening
• Consistent blank dimensions allow repeatable tool geometry when ground to a fixed setup
• Suitable for use with surface grinders and bench tool grinders with appropriate CBN or aluminum oxide wheels

Compatibility

Designed as a general-purpose tool bit blank for use in standard tool holders and grinding fixtures that accept 8 mm square shank tooling.

Installation Notes

Grinding tool bit blanks is performed by qualified machinists or toolroom technicians using appropriate wheel dressing and coolant practices. Secure the blank firmly in a magnetic chuck or V-block before beginning any grinding operation. Wear appropriate eye protection and ensure the grinding wheel is rated for the material being ground. Follow shop safety protocols and applicable OSHA machine-guarding requirements when operating grinding equipment.
