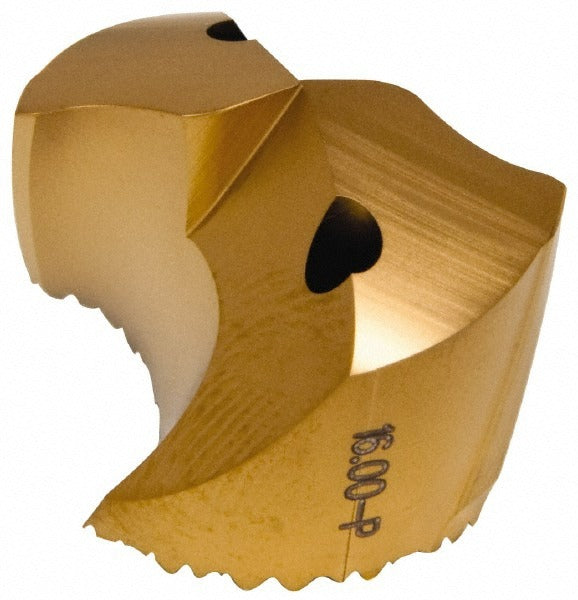

Seco 00098536 Carbide Replaceable Tip Drill 16mm SD100

Product Description

The SECO 00098536 is a carbide replaceable tip drill from the SD100 series, designed for high-performance drilling in steel and other P-category workpiece materials. The drill features a solid carbide tip with a TiAlN coating applied via PVD process, delivering heat resistance and wear life in demanding production environments. The 140-degree included angle geometry promotes self-centering and clean entry. Through-coolant capability routes fluid directly to the cutting edge, supporting chip evacuation and thermal management in deep-hole drilling operations. The tip geometry is designated P, matching the P-category steel workpiece classification. Licensed machinists and CNC operators install and replace these tips as part of routine tooling maintenance on machining centers and drilling machines.

The 00098536 is suited for production drilling in steel components across general metalworking, automotive, and industrial fabrication applications. The SD100 replaceable tip platform allows tip replacement without removing the drill body from the toolholder, reducing downtime during tool changeovers. Through-coolant delivery is particularly effective in vertical machining centers and CNC lathes where coolant pressure is available. The 16mm diameter and 140-degree point angle make it appropriate for spot-to-finish drilling without a pre-drill in most steel grades classified under ISO P workpiece material codes.

Key Features

• Solid carbide replaceable tip for repeatable geometry at each replacement
• TiAlN coating via PVD process for heat resistance and extended tool life in steel
• 140-degree included angle for self-centering entry and reduced thrust force
• Through-coolant design routes fluid directly to the cutting zone for chip evacuation
• P insert geometry optimized for ISO P primary workpiece materials including carbon and alloy steels
• SD100 series platform supports tip swap without full tool body removal

Compatibility

Designed for use with SD100 series drill bodies accepting P-geometry replaceable tips. Primary workpiece material compatibility is ISO P category steel. Specific body compatibility should be verified against SECO SD100 series toolholder documentation prior to ordering.

Installation Notes

Replaceable tip installation should be performed by a qualified machinist or tooling technician following the tool manufacturer's torque and seating procedure for the SD100 body. Ensure the spindle is fully stopped and the machine is in a safe state before changing tips. Verify tip seating and locking engagement before returning the tool to operation. Through-coolant connections should be confirmed at the toolholder interface to ensure unobstructed coolant flow to the cutting edge.
