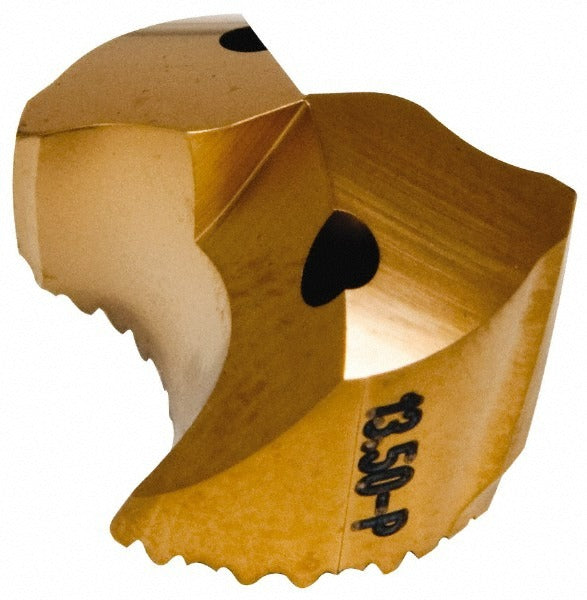

Seco 00098530 Carbide Replaceable Tip Drill 13.5mm SD100

Product Description

The SECO 00098530 is a carbide replaceable tip drill in the SD100 series, designed for high-productivity hole-making in steel and other primary workpiece materials. The drill body accepts a solid carbide replaceable tip with a P-geometry insert, finished with a TiAlN coating applied via PVD process. The 140-degree included angle promotes self-centering entry and reduces cutting forces on entry and exit. At 13.5mm in diameter with a tip height of 10.4mm (0.41 inches), this drill is suited for precision drilling operations where consistent hole quality and tip replaceability reduce downtime on the floor.

The 00098530 is intended for use in CNC machining centers and drilling operations targeting steel workpieces, corresponding to ISO material group P. The through-coolant design delivers cutting fluid directly to the cutting edge, making it effective in deep-hole and high-feed applications where heat management and chip evacuation are critical. It is installed and used by machinists and tool-and-die professionals in production and job-shop environments.

Key Features

• Solid carbide replaceable tip — reduces tooling cost compared to full solid-carbide drills
• TiAlN PVD coating — improves wear resistance and thermal hardness at the cutting edge
• 140-degree included angle — self-centering geometry reduces walking and burring
• Through-coolant capable — directs coolant to the cutting zone for improved chip evacuation and tool life
• P-geometry insert — optimized for steel and ferrous workpiece materials (ISO P group)
• SD100 series platform — standardized body allows tip swaps without replacing the full drill body

Compatibility

Designed as a replaceable tip drill within the SECO SD100 series platform. Compatible drill bodies and replacement tips must match the SD100 series and P-geometry designation as specified by SECO tooling documentation.

Installation Notes

Installation and tip replacement should be performed by qualified machinists following the machine tool manufacturer lockout and tagout procedures before any tooling change. Secure the replaceable tip to the recommended seating torque per SECO SD100 series tooling documentation using the appropriate torque key — do not substitute tools. Verify through-coolant passages are clear before mounting and confirm spindle RPM and feed rate parameters match the recommended cutting data for the workpiece material. Do not operate the drill with a damaged or improperly seated tip.
