Seco 00096701 Grooving Insert Lcmf CP500 Solid Carbide

Product Description

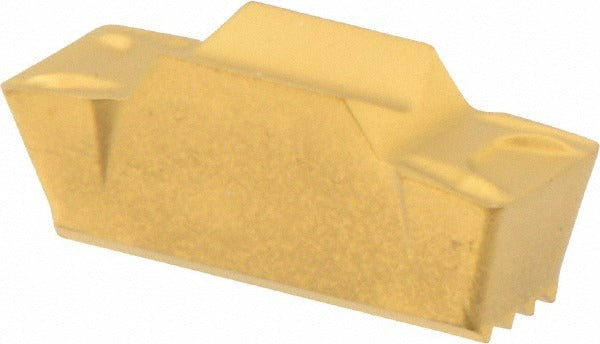

The SECO 00096701 is a solid carbide grooving insert designed for precision grooving and parting operations on CNC lathes and turning centers. It belongs to the LCMF series and carries the CP500 manufacturer grade with a PVD-applied TiAlN and TiN dual-layer coating for extended tool life across a wide range of workpiece materials. The insert features a neutral hand orientation, a double-end configuration that doubles usable cutting edges, and a positive rake angle of 7 degrees for reduced cutting forces. Cutting width is 0.1969 inches (5.00 mm) and overall length is 0.6300 inches. Machinists and CNC operators install this insert as a direct replacement in compatible LCMF-style toolholders.

This insert is suited for universal application across multiple material groups, including steel, stainless steel, cast iron, non-ferrous metals, superalloys, and hardened materials, corresponding to ISO material codes H, K, M, N, O, P, and S. It is appropriate for both roughing and finishing grooves in high-production turning environments where consistent chip control and dimensional accuracy are required. The FT chip breaker geometry supports reliable chip evacuation during grooving passes. This insert is used in job shops, aerospace, automotive, and general metalworking operations.

Key Features

• CP500 grade micrograin solid carbide substrate for toughness and wear resistance
• PVD-applied TiAlN and TiN dual-layer coating for high-temperature performance
• Double-end design provides two cutting edges per insert
• Positive rake angle of 7 degrees reduces cutting forces and heat generation
• FT chip breaker geometry promotes controlled chip formation
• Neutral hand orientation fits standard LCMF-series toolholders

Compatibility

Designed as a direct replacement insert for LCMF-series grooving toolholders using insert size 160504 with a seat size of 5. Compatible across ISO workpiece material groups H, K, M, N, O, P, and S as specified by the manufacturer.

Installation Notes

This insert is installed and replaced by a machinist or CNC toolroom technician. Before changing inserts, ensure the machine is powered down, the spindle is stopped, and all axis motion is locked out per shop lockout/tagout procedures. Use the appropriate torx or hex key for the clamping screw specified by the toolholder manufacturer. Inspect the insert pocket and clamping surfaces for wear or debris before seating the new insert.
