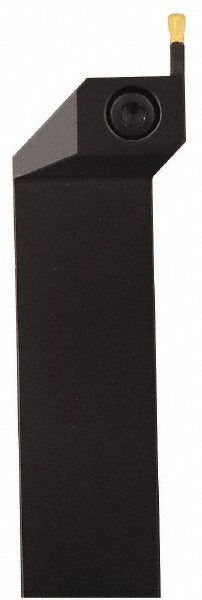

Seco 00096181 Lh Cfml Indexable Turning Toolholder

Product Description

The SECO 00096181 is a left-hand CFML-style indexable turning toolholder designed for cut-off and grooving operations on CNC and manual lathes. Built from steel with a 1 inch x 1 inch shank and a 6 inch overall length, this toolholder accepts LC..1606.. series inserts secured by a clamp-style holding method. It features coolant-through capability to extend insert life and improve chip evacuation during deep or interrupted cuts. The 00096181 belongs to SECO's Multi-Directional Turning (MDT) series, making it a versatile option for shops running a range of turning applications across multiple workpiece materials.

This toolholder is intended for professional machinists and toolroom technicians working on ferrous and non-ferrous metals, exotic alloys, and general-purpose materials. The universal primary workpiece material rating covers ISO material groups H, K, M, N, P, and S, making it adaptable across a wide variety of production turning scenarios. Its left-hand cutting direction and 90-degree lead angle suit specific setup orientations where a standard right-hand holder cannot be applied. The multi-use tool designation supports both cut-off and grooving operations without retooling.

Key Features

• Left-hand cutting direction with 90-degree lead angle for dedicated setup orientations
• Clamp-style insert holding method for rigid, repeatable insert seating
• Coolant-through design to support chip evacuation and insert longevity
• Accepts LC..1606.. inserts including LCGN, LCMF, and LCMR styles
• Maximum depth of cut of 1.181 inches with a 0.25 inch insert width
• Steel construction rated for universal workpiece material compatibility across ISO groups H, K, M, N, P, and S
• Multi-use tool supports both cut-off and grooving without holder change

Compatibility

Compatible insert styles include LC..1606.., LCGN, LCMF, and LCMR series inserts with a 6.00 mm (0.25 inch) insert width. This toolholder is part of the SECO Multi-Directional Turning (MDT) series.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine before mounting or removing the toolholder from the turret or tool post. Ensure the shank is fully seated and the clamp fastener is tightened to machine manufacturer specifications before starting a cut. Verify insert style and size against the LC..1606.. compatibility list before seating any insert to avoid improper engagement.
