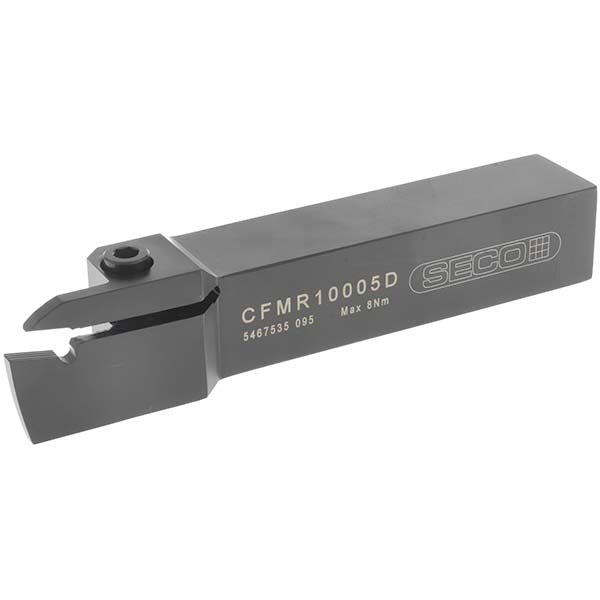

Seco 00096178 Cfmr Indexable Turning Toolholder 1x1 Shank

Product Description

The SECO 00096178 is a right-hand CFMR-style indexable turning toolholder designed for grooving and cut-off operations on CNC and manual lathes. Built from steel, it features a 1 inch x 1 inch square shank and an overall length of 6 inches. The toolholder uses a top-clamp insert-holding method and accepts LC..1605.. series inserts, including LCGN, LCMF, and LCMR styles. A 90-degree lead angle and coolant-through capability make it well suited for demanding turning applications across a wide range of workpiece materials. It is part of the SECO Multi-Directional Turning (MDT) series and is rated as a multi-use tool.

This toolholder is intended for professional machinists and tool-crib technicians working in production or job-shop environments. Its universal primary workpiece material compatibility spans steel, cast iron, stainless, non-ferrous, and superalloy materials, making it a versatile option across turning centers. The coolant-through design supports chip evacuation and extended insert life in deep grooving passes. Right-hand cutting direction suits standard lathe setups where the tool advances from right to left.

Key Features

• CFMR toolholder style with 90-degree lead angle for square-shoulder grooving and cut-off
• Accepts LC..1605.. inserts including LCGN, LCMF, and LCMR — clamp-style insert retention
• Coolant-through shank for improved chip control and insert cooling
• Maximum depth of cut: 0.984 inches
• Head length of 1.7 inches with back-of-bar to cutting edge distance of 1.25 inches
• Multi-use, multi-directional design compatible with universal workpiece materials

Compatibility

Designed for use with LC..1605.. series inserts, specifically LCGN, LCMF, and LCMR styles with a 5.00 mm (0.187 inch) insert width. Compatible insert size code: LC1605. Part of the SECO Multi-Directional Turning (MDT) series.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Shut down and lock out the machine before mounting or removing the toolholder. Ensure the shank bore and toolholder surfaces are clean and free of chips before seating. Verify insert seating and clamp torque per your machine tool and insert manufacturer guidelines before resuming cutting operations.
