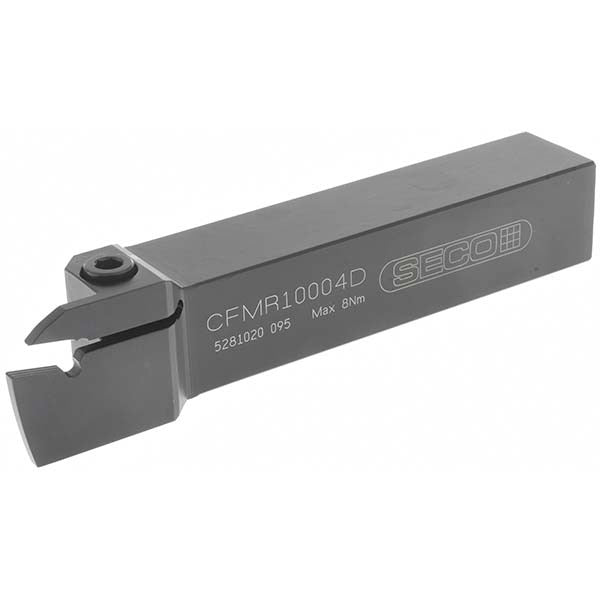

Seco 00096176 Cfmr Indexable Turning Toolholder

Product Description

The SECO 00096176 is a right-hand CFMR-style indexable turning toolholder engineered for cut-off and grooving operations on CNC lathes and turning centers. It features a 1 x 1 inch square shank, a 6 inch overall length, and accepts LC..1604.. series inserts secured by a clamp-style holding method. Coolant-through capability supports chip evacuation and tool life in demanding cuts. The toolholder is manufactured from steel and is rated for universal workpiece materials, including ferrous, non-ferrous, superalloys, and hardened materials corresponding to ISO material codes H, K, M, N, P, and S.

This toolholder is suited for external cut-off and grooving applications in both production and job-shop turning environments. The 90-degree lead angle and right-hand cutting direction make it a direct fit for standard right-hand turning setups. Its multi-directional turning series design supports flexible tool paths. The back-of-bar to cutting edge measurement is 1.25 inches, the head length is 1.54 inches, and the maximum depth of cut is 0.787 inches. Compatible inserts include the LCGN, LCMF, and LCMR families in the LC..1604.. format, with a 4 mm (0.157 inch) insert width.

Key Features

• CFMR-style clamp holding method provides rigid insert seating during grooving and cut-off passes
• Coolant-through design aids chip removal and extends insert life in continuous cuts
• 90-degree lead angle and right-hand cutting direction for standard external turning setups
• Multi-Directional Turning (MDT) series supports flexible tool path strategies
• Accepts LC..1604.. inserts including LCGN, LCMF, and LCMR families
• Steel construction for durability and rigidity under interrupted and continuous cuts

Compatibility

Compatible with LC..1604.., LCGN, LCMF, and LCMR indexable inserts with a 4 mm (0.157 inch) insert width. Also referenced under manufacturer catalog numbers CFMR and L-100-04D. Suitable for universal workpiece materials across ISO codes H, K, M, N, P, and S.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the turret is in a safe index position before mounting or removing the toolholder. Torque all clamping screws according to the insert manufacturer insert specification sheet. Verify coolant-through lines are clear and properly connected before resuming cutting operations.
